Levelling foot MASSIV Stainless Steel, Ø 120 mm, M30 x 200 mm, NBR
EAN
4061408095506
Type
45815091
Discover the MASSIV Stainless Steel Levelling Foot, featuring a robust 120 mm diameter and a static load capacity of 40,000 N. Ideal for precise adjustments in demanding environments.
| Quantity | Price |
|---|---|
| From 1 |
€70.11*
|
| From 13 |
€65.86*
|
| From 25 |
€61.61*
|
| From 50 |
€58.64*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 200 |
| Balancing angle: | 5° |

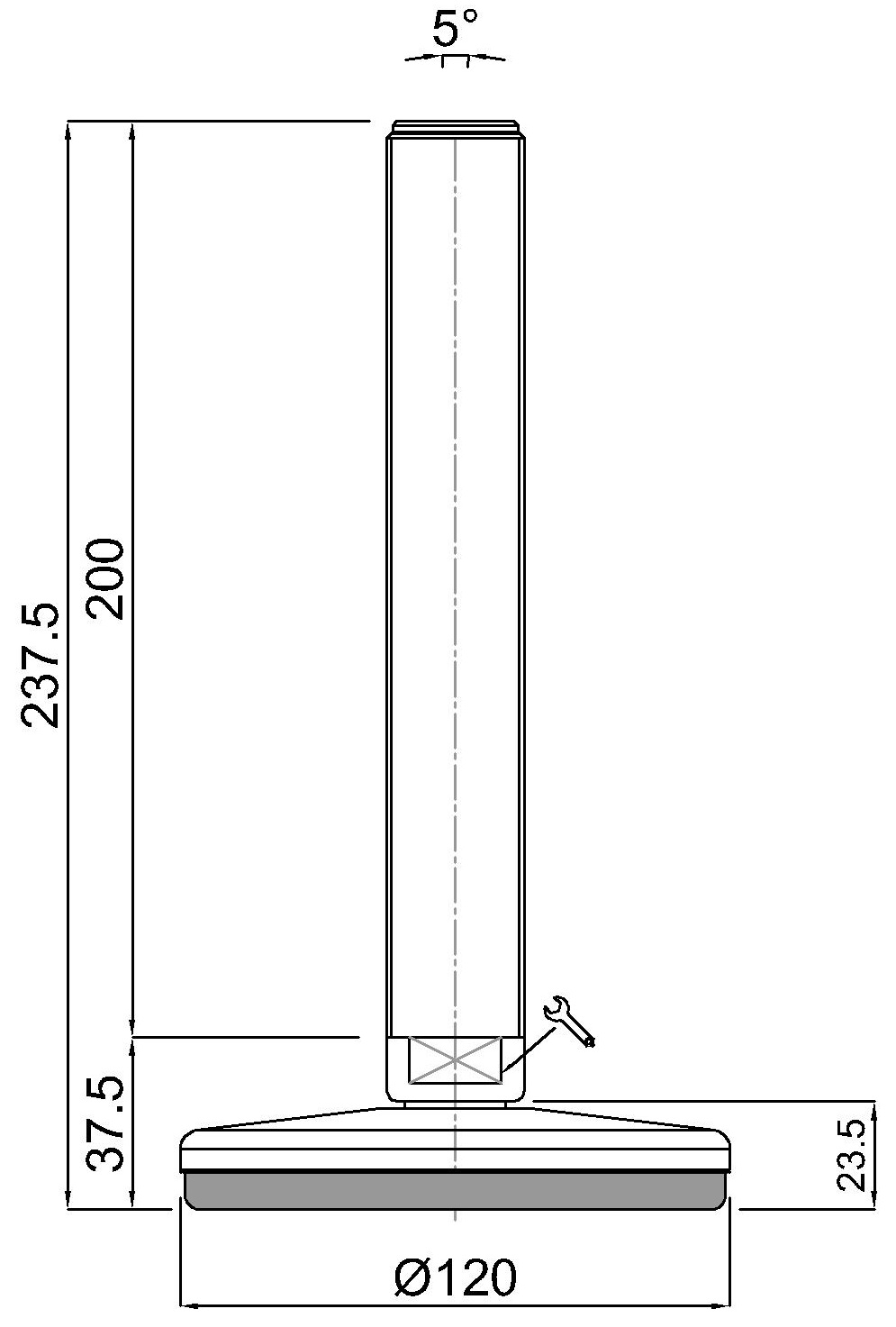

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 120 mm, M30 x 200 mm, Stainlees steel, Total height 237 mm, Articulated screw 5°, Antislip NBR black, Static load 40.000 N
