Levelling foot MASSIV Stainless Steel, Ø 120 mm, M30 x 125 mm, NBR
EAN
4061408095490
Type
45815088
Enhance your machinery's stability with the MASSIV Levelling Foot, featuring a durable stainless steel design, adjustable height, and a superior static load capacity of 40,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€62.40*
|
| From 13 |
€58.62*
|
| From 25 |
€54.84*
|
| From 50 |
€52.19*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 125 |
| Balancing angle: | 5° |

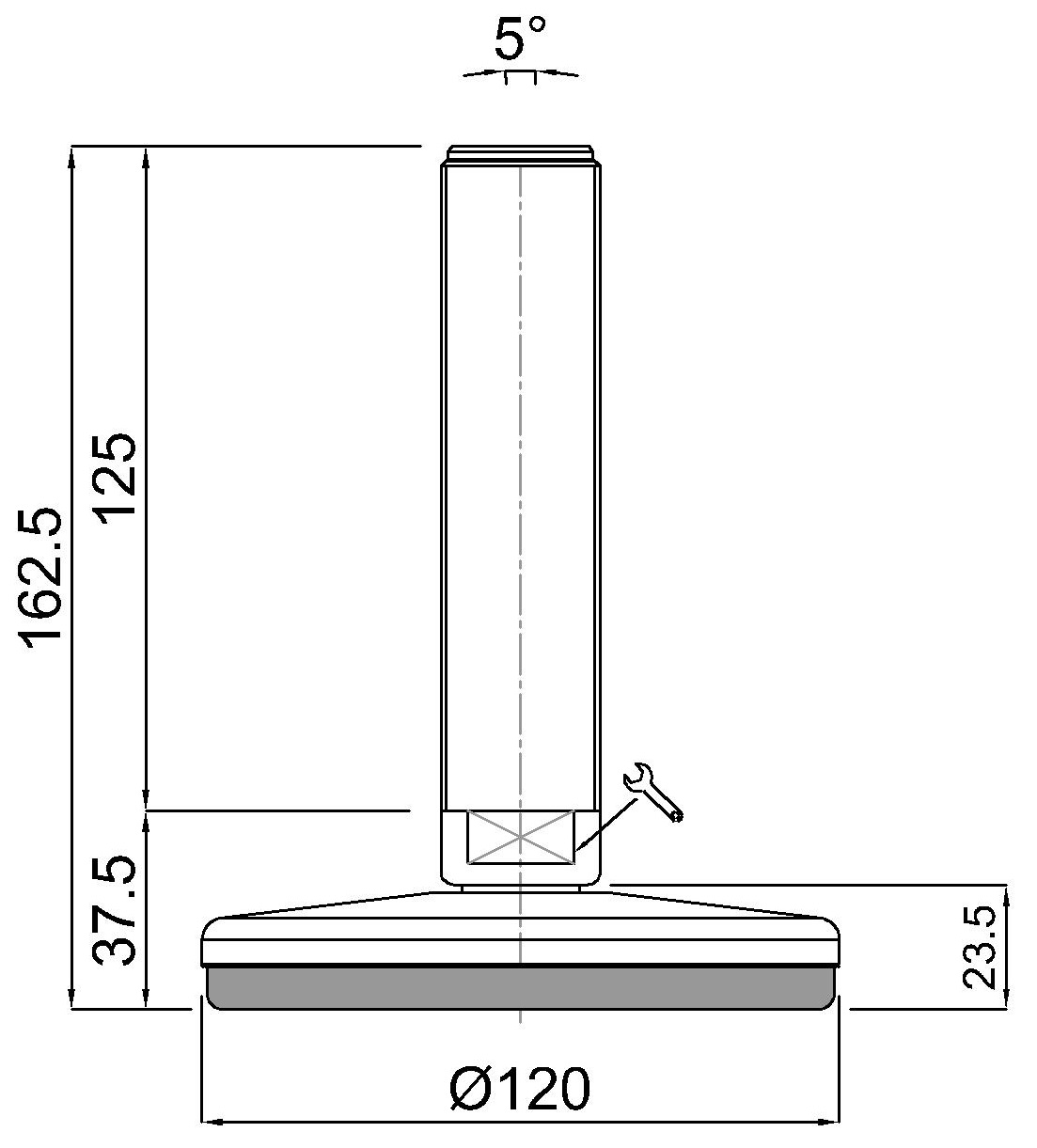

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 120 mm, M30 x 125 mm, Stainlees steel, Total height 162 mm, Articulated screw 5°, Antislip NBR black, Static load 40.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
