Levelling foot MASSIV Stainless Steel, Ø 120 mm, M30 x 100 mm, NBR
EAN
4061408095483
Type
45815087
The MASSIV Stainless Steel Levelling Foot, with a 120 mm diameter and 100 mm spindle length, offers exceptional stability and load capacity up to 40,000 N. Its articulated screw allows for a 5° adjustment, ensuring precise leveling in various applications.
| Quantity | Price |
|---|---|
| From 1 |
€58.62*
|
| From 13 |
€55.07*
|
| From 25 |
€51.52*
|
| From 50 |
€49.03*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 100 |
| Balancing angle: | 5° |

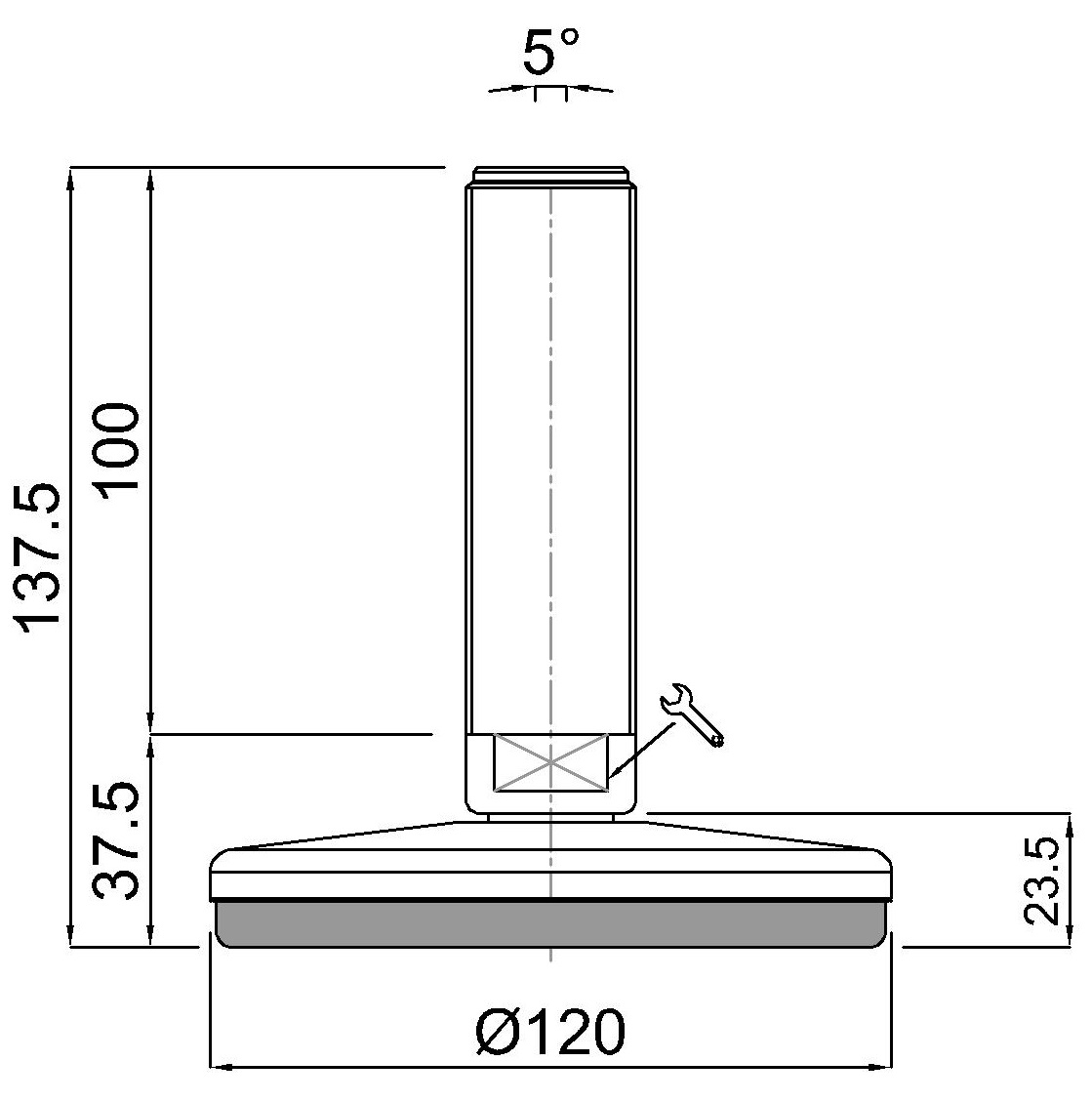

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 120 mm, M30 x 100 mm, Stainlees steel, Total height 137 mm, Articulated screw 5°, Antislip NBR black, Static load 40.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
