Levelling foot MASSIV Stainless Steel, Ø 120 mm, M20 x 225 mm, NBR
EAN
4061408095414
Type
45815076
Introducing the MASSIV Stainless Steel Levelling Foot: engineered for durability with a 120 mm base, adjustable up to 261 mm in height, and capable of supporting static loads up to 40,000 N. The 5° articulated screw and NBR anti-slip feature provide exceptional stability and precision for various industrial applications.
| Quantity | Price |
|---|---|
| From 1 |
€56.74*
|
| From 13 |
€53.30*
|
| From 25 |
€49.87*
|
| From 50 |
€47.46*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 225 |
| Balancing angle: | 5° |

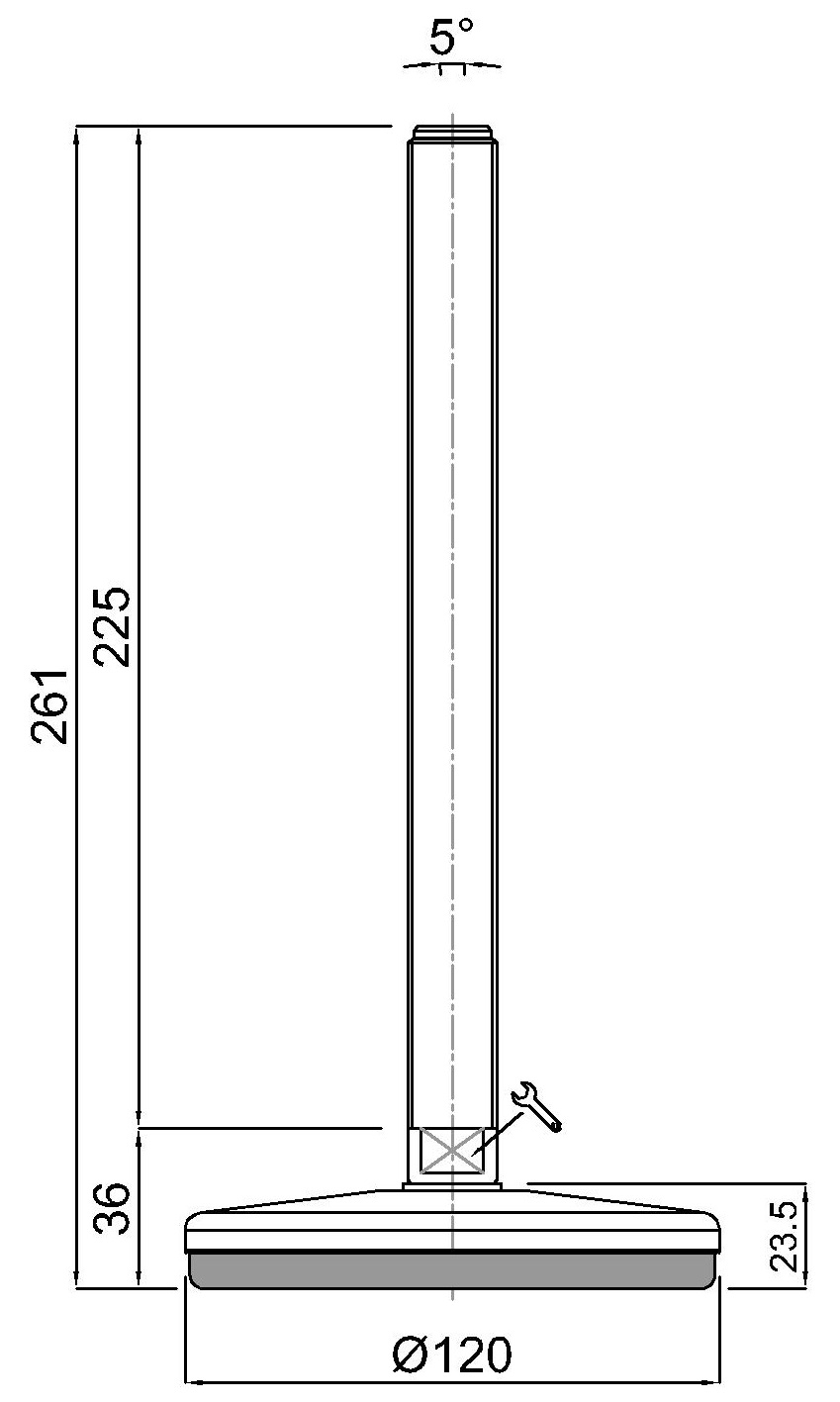

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 120 mm, M20 x 225 mm, Stainlees steel, Total height 261 mm, Articulated screw 5°, Antislip NBR black, Static load 40.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
