Levelling foot MASSIV Stainless Steel, Ø 120 mm, M16 x 200 mm, NBR
EAN
4061408095384
Type
45815068
The MASSIV Levelling Foot, crafted from stainless steel, features a 120 mm diameter and M16 x 200 mm spindle, ensuring stability with a static load capacity of 40,000 N. Its articulated design allows for a 5° adjustment, while the black NBR anti-slip surface enhances grip. Ideal for demanding engineering applications.
| Quantity | Price |
|---|---|
| From 1 |
€50.95*
|
| From 13 |
€47.86*
|
| From 25 |
€44.78*
|
| From 50 |
€42.61*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 200 |
| Balancing angle: | 5° |

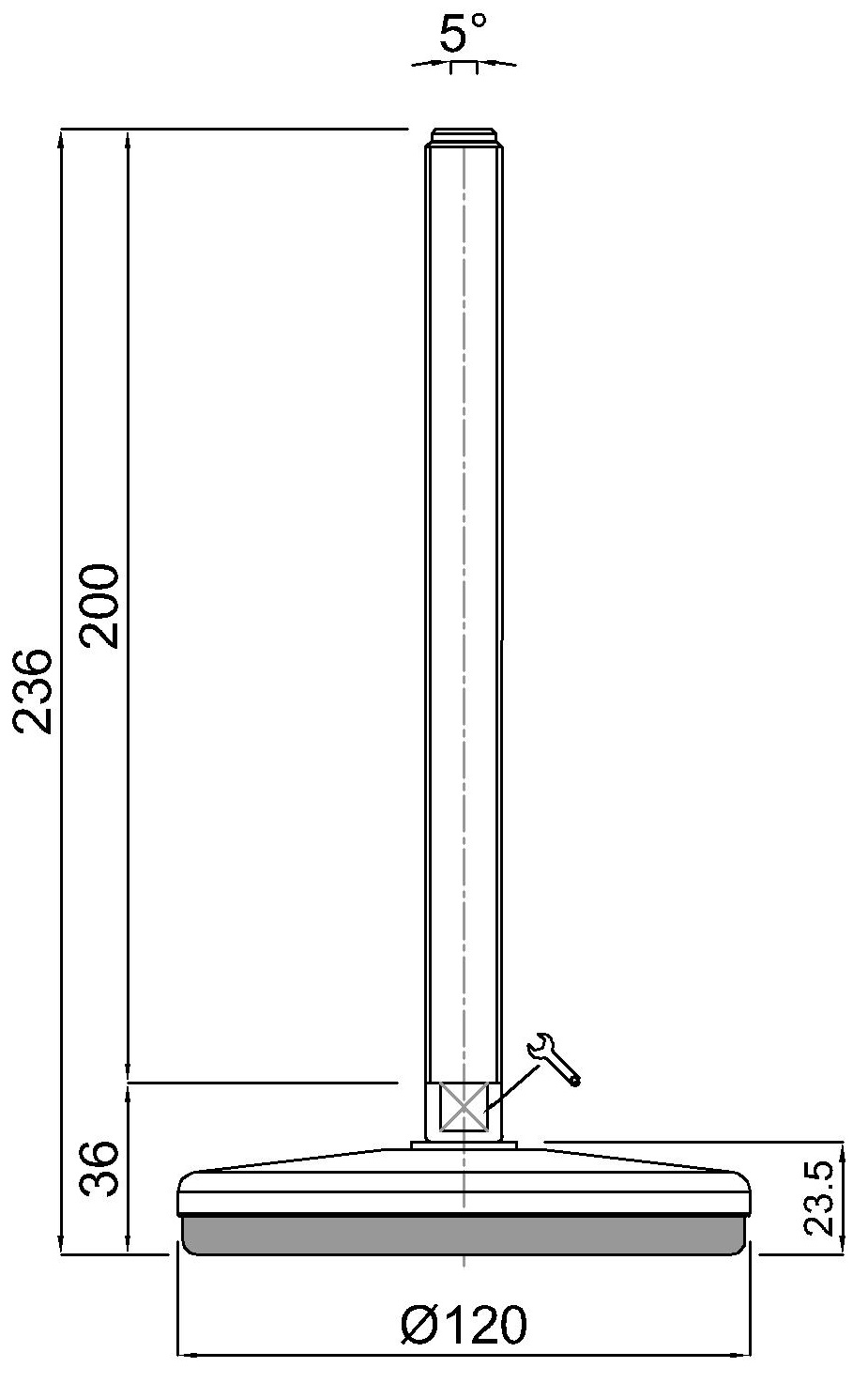

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 120 mm, M16 x 200 mm, Stainlees steel, Total height 236 mm, Articulated screw 5°, Antislip NBR black, Static load 40.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
