Levelling foot MASSIV Stainless Steel, Ø 100 mm, M20 x 50 mm, NBR
EAN
4061408092802
Type
45815045
Optimize your equipment's stability with the MASSIV Stainless Steel Levelling Foot. Designed for heavy loads up to 30,000 N, its 100 mm diameter and adjustable 5° angle ensure reliable support and anti-slip performance.
| Quantity | Price |
|---|---|
| From 1 |
€30.41*
|
| From 13 |
€28.57*
|
| From 25 |
€26.72*
|
| From 50 |
€25.43*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 50 |
| Balancing angle: | 5° |

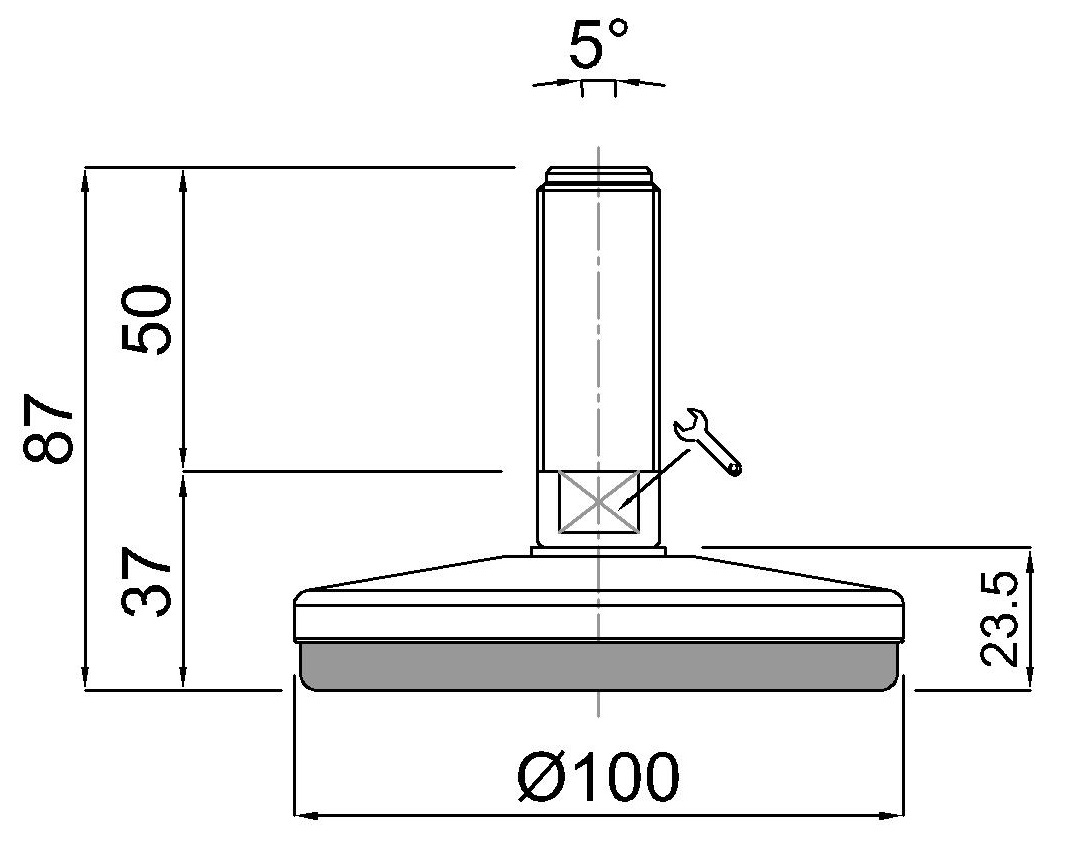

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 100 mm, M20 x 50 mm, Stainlees steel, Total height 87 mm, Articulated screw 5°, Antislip NBR black, Static load 30.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
