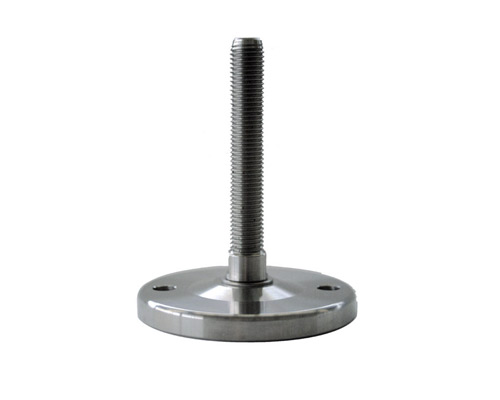

Levelling foot MASSIV Stainless Steel AISI316, Ø 100 mm, M24 x 200 mm, Drills, MOQ 50 pcs
EAN
4061408089994
Type
45815217/316
Introducing the MASSIV Levelling Foot: crafted from AISI316 stainless steel, ensuring durability and corrosion resistance. With a static load capacity of 35,000 N and adjustable height, it’s ideal for precision engineering applications. MOQ 50 pcs.
| Quantity | Price |
|---|---|
| From 1 |
€69.86*
|
| From 13 |
€65.63*
|
| From 25 |
€61.39*
|
| From 50 |
€58.43*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel AISI316/V4A |
| Anti-slip: | No |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Stainless steel AISI316/V4A |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 200 |
| Balancing angle: | 5° |
| Hygiene: | No |
Technical drawing
Levelling foot MASSIV Stainless steel AISI316 / V4A, Ø 100 mm, M24 x 200 mm, Total height 230 mm, Articulated screw 5°, Bore holes Ø 12,5 mm, Static load 35.000 N, MOQ 50 pcs.
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
