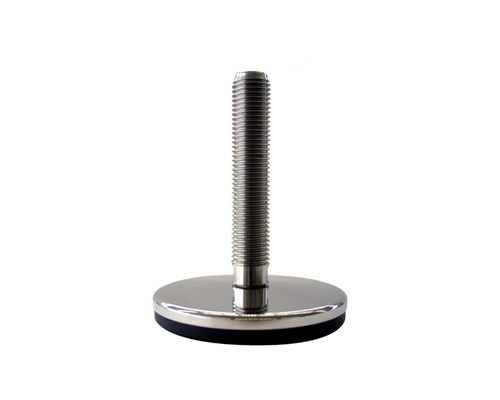

Levelling foot MASSIV Stainless Steel, Ø 150 mm, M24 x 100 mm, NBR
EAN
4061408086351
Type
45815102
Discover the MASSIV Stainless Steel Levelling Foot, designed for precision and stability. With a 150 mm diameter and an impressive static load capacity of 50,000 N, it features an articulated screw for a 5° adjustment and an anti-slip NBR base for secure placement. Ideal for demanding engineering applications.
| Quantity | Price |
|---|---|
| From 1 |
€78.71*
|
| From 13 |
€73.94*
|
| From 25 |
€69.17*
|
| From 50 |
€65.83*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 100 |
| Balancing angle: | 5° |
Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 150 mm, M24 x 100 mm, Stainlees steel, Total height 140 mm, Articulated screw 5°, Antislip NBR black, Static load 50.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
