Levelling foot MASSIV Stainless Steel, Ø 150 mm, M20 x 200 mm, NBR
EAN
4061408086344
Type
45815099
Ensure stability and precision with the MASSIV Stainless Steel Levelling Foot. Its robust design supports a static load of 50,000 N and features an articulated screw for effective leveling in varied applications.
| Quantity | Price |
|---|---|
| From 1 |
€82.14*
|
| From 13 |
€77.16*
|
| From 25 |
€72.18*
|
| From 50 |
€68.70*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 200 |
| Balancing angle: | 5° |

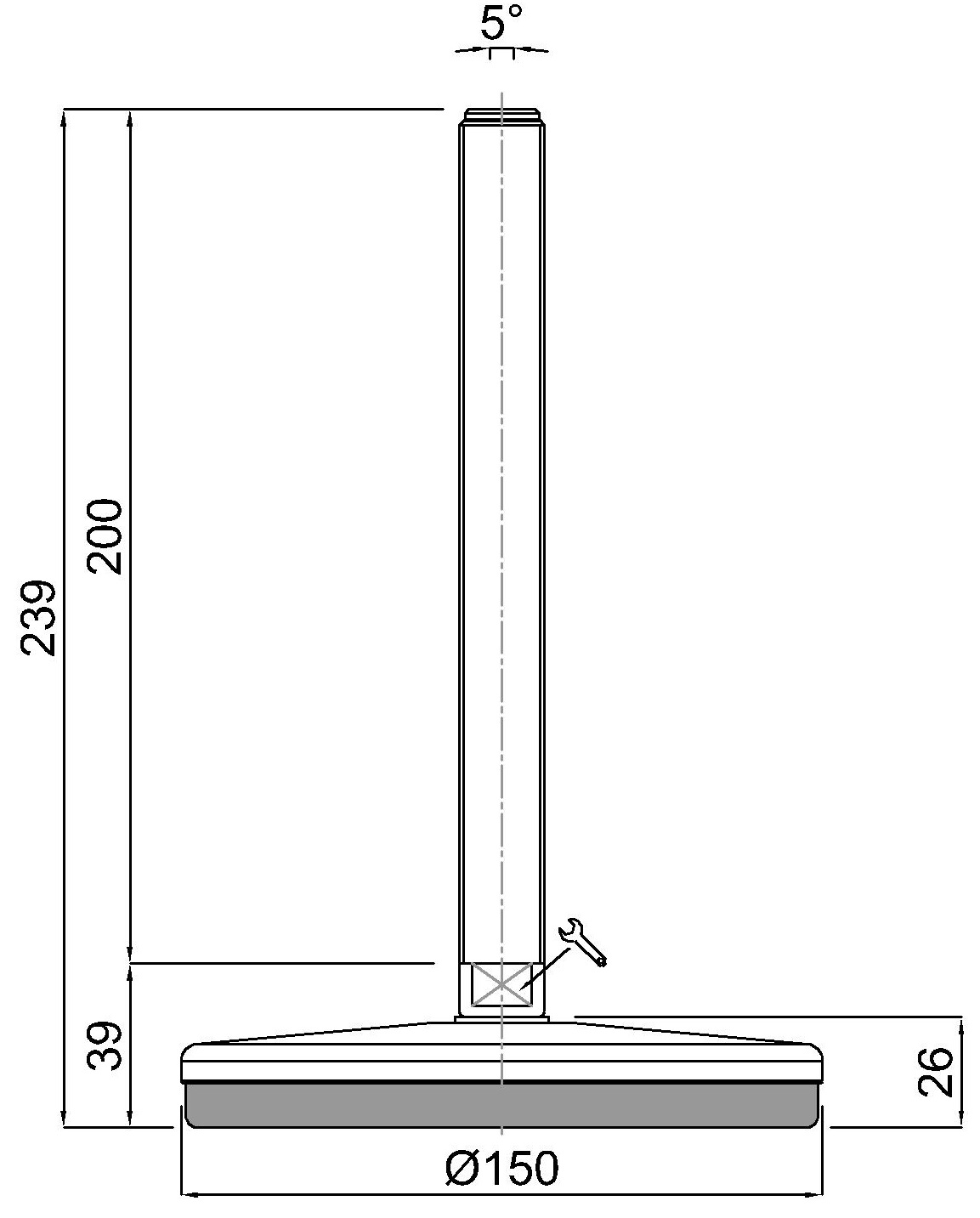

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 150 mm, M20 x 200 mm, Stainlees steel, Total height 239 mm, Articulated screw 5°, Antislip NBR black, Static load 50.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
