Levelling foot MASSIV Stainless Steel, Ø 60 mm, M14 x 150 mm, NBR
EAN
4061408084975
Type
45815013
Discover the MASSIV Levelling Foot, crafted from stainless steel for superior durability. Featuring a 60 mm diameter, M14 x 150 mm screw, and 5° articulation, it supports static loads up to 15,000 N, ensuring stability and precision in your engineering applications.
| Quantity | Price |
|---|---|
| From 1 |
€18.40*
|
| From 13 |
€17.28*
|
| From 25 |
€16.17*
|
| From 50 |
€15.39*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 51-70 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 14 |
| Spindle length (mm): | 150 |
| Balancing angle: | 5° |

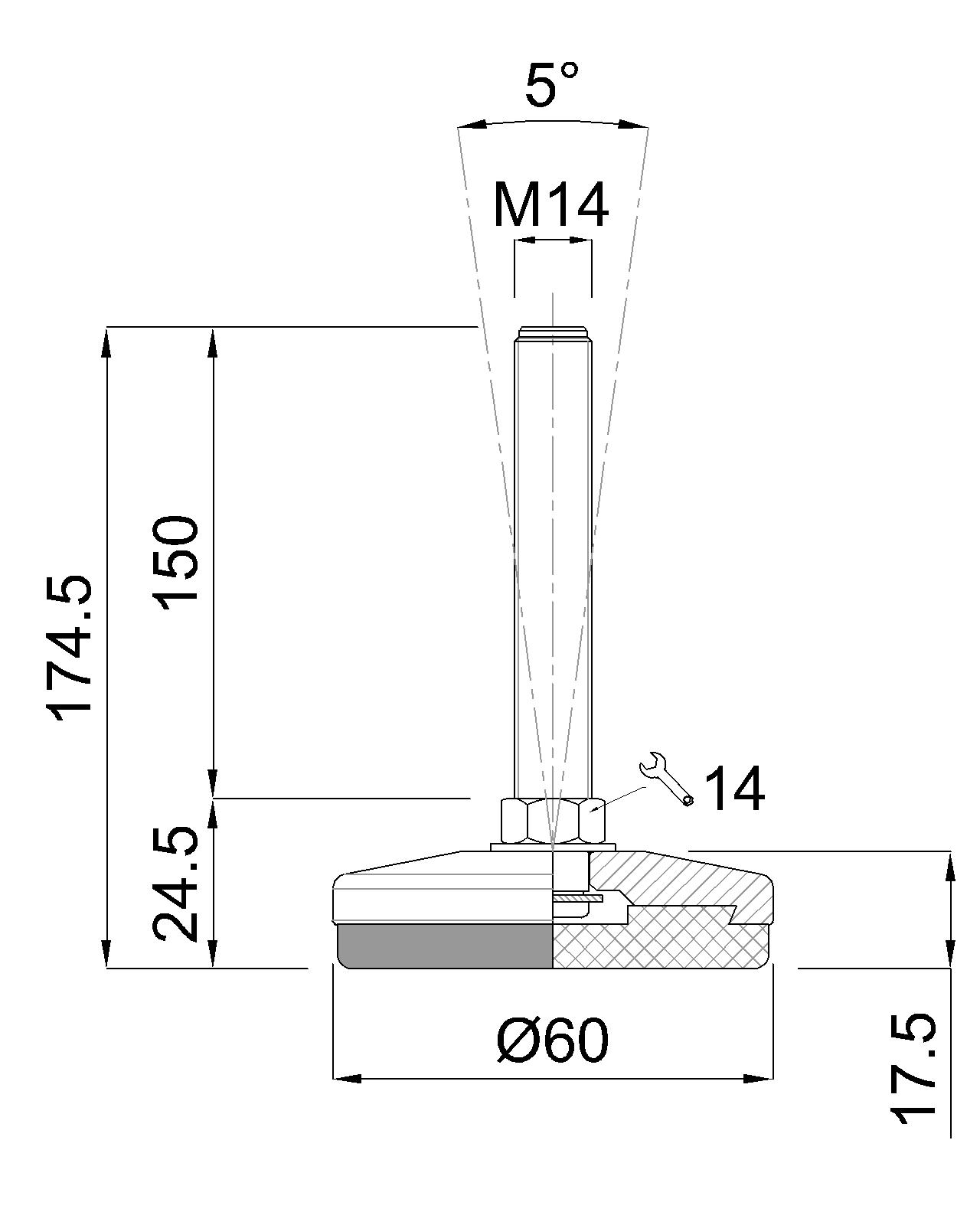

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 60 mm, M14 x 150 mm, Stainlees steel, Total height 174 mm, Articulated screw 5°, Antislip NBR black, Static load 15.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
