Levelling foot MASSIV Stainless Steel, Ø 50 mm, M14 x 125 mm, NBR
EAN
4061408084968
Type
45815012/50
The MASSIV Stainless Steel Levelling Foot offers exceptional stability with a 50 mm diameter and 12,000 N static load capacity. Ideal for precise adjustments, it features a durable NBR anti-slip base and a 5° articulated screw for versatile applications.
| Quantity | Price |
|---|---|
| From 1 |
€14.70*
|
| From 13 |
€13.81*
|
| From 25 |
€12.92*
|
| From 50 |
€12.30*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 41-50 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 14 |
| Spindle length (mm): | 125 |
| Balancing angle: | 5° |

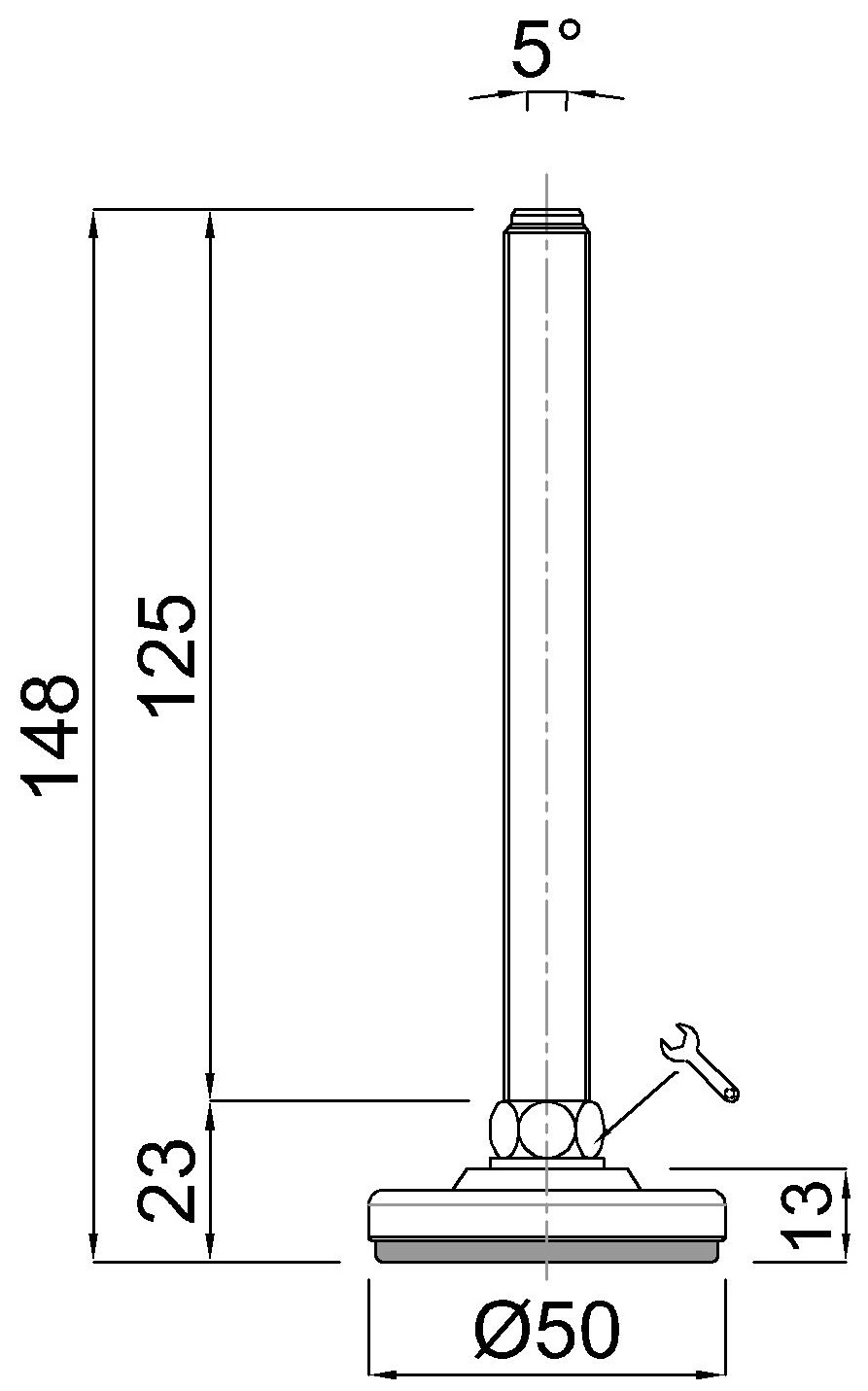

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 50 mm, M14 x 125 mm, Stainlees steel, Total height 155 mm, Articulated screw 5°, Antislip NBR black, Static load 12.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
