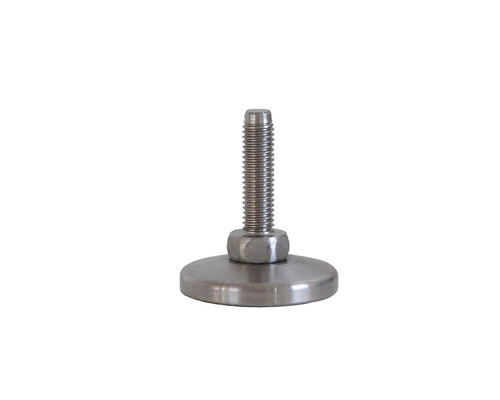

Levelling foot MASSIV Stainless Steel, Ø 40 mm, M10 x 50 mm, NBR

EAN 4061408079933

Type 458381050/G

Discover the MASSIV Stainless Steel Levelling Foot, featuring a robust design with a 40 mm diameter and an adjustable articulated screw for precise alignment. Ideal for high static loads up to 9,000 N.

High load capacity: Supports a static load of up to 9,000 N, ensuring stability in demanding applications.
Durable construction: Made from high-quality stainless steel, both the footplate and the spindle provide long-lasting performance.
Optimal stability: The articulated screw allows for a compensation angle of 5°, accommodating uneven surfaces.
Anti-slip feature: Equipped with a black NBR rubber base, enhancing grip and preventing slippage.
Versatile fit: Designed for footplate diameters between 31-40 mm, making it suitable for a variety of setups.

Quantity	Price
From 1	€10.46*
From 13	€9.83*
From 25	€9.19*
From 50	€8.75*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€10.46* / piece

Our payment methods:

Product properties

Footplate material:	Stainless steel
Anti-slip:	NBR black
Ø range base plate (mm):	31-40
Material spindle:	Stainless steel
Ø spindle (mm):	10
Spindle length (mm):	50
Balancing angle:	5°

Product description

Levelling foot MASSIV Stainless Steel, Ø 40 mm, M10 x 50 mm, Stainlees steel, Total height 67 mm, Articulated screw 5°, Antislip NBR black, Static load 9.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity

Levelling foot MASSIV Stainless Steel, Ø 40 mm, M10 x 50 mm, NBR

Product properties

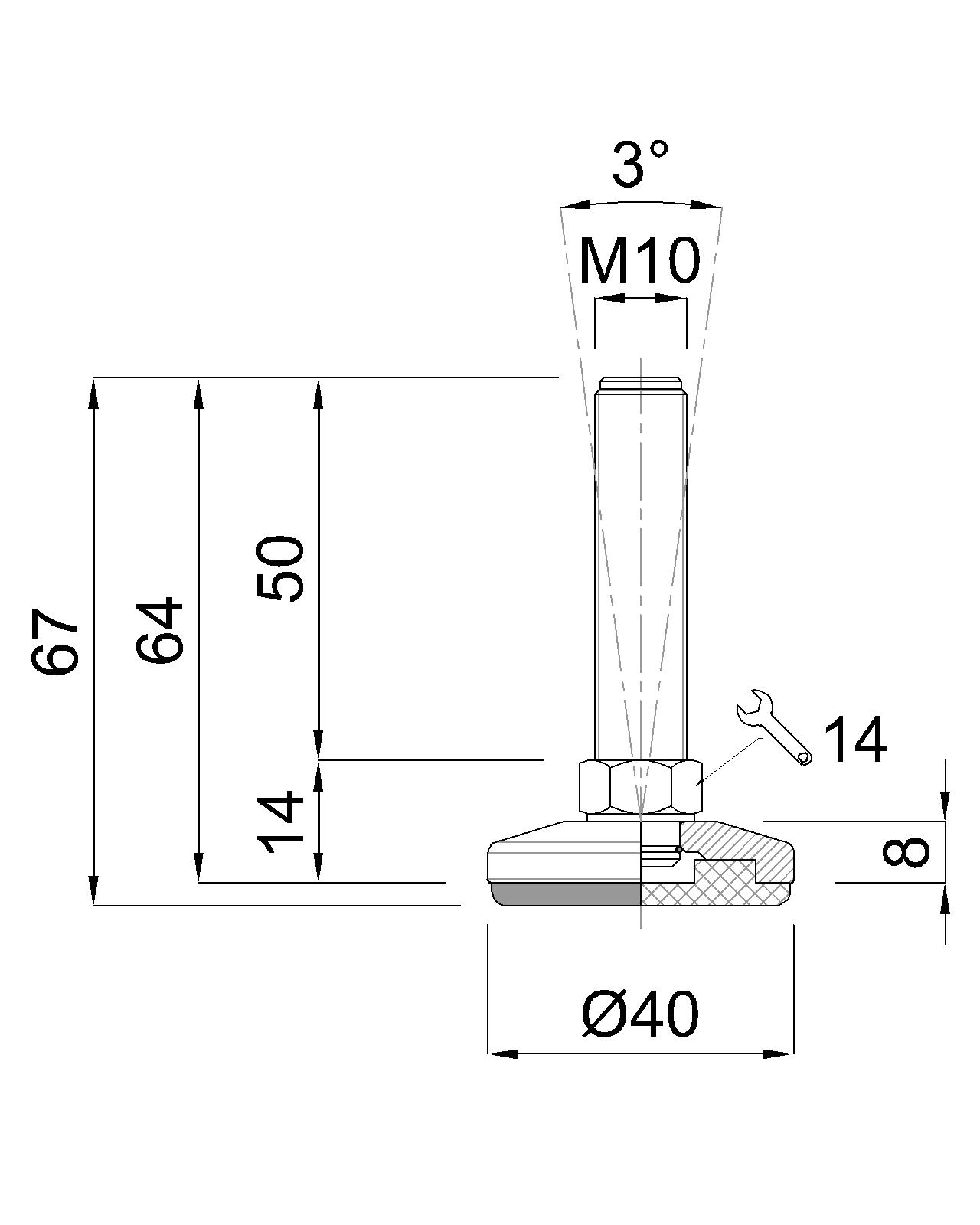

Technical drawing

Product description
