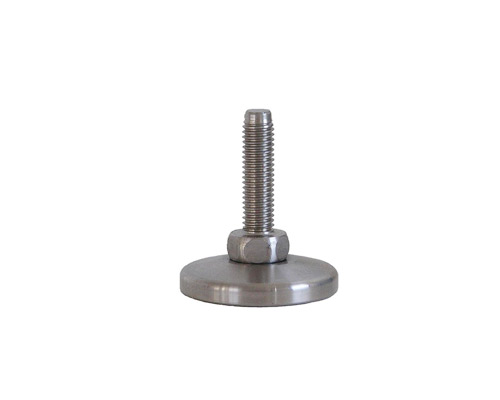

Levelling foot MASSIV Stainless Steel, Ø 40 mm, M10 x 25 mm, NBR
Discover the MASSIV stainless steel leveling foot, featuring a 40 mm diameter and M10 x 25 mm threaded spindle. With a static load capacity of 9,000 N and an articulated screw for precise adjustments, this foot ensures optimal stability and durability for your engineering projects.
| Quantity | Price |
|---|---|
| From 1 |
€9.65*
|
| From 13 |
€9.07*
|
| From 25 |
€8.48*
|
| From 50 |
€8.07*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 31-40 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 10 |
| Spindle length (mm): | 25 |
| Balancing angle: | 5° |
| Hygiene: | No |

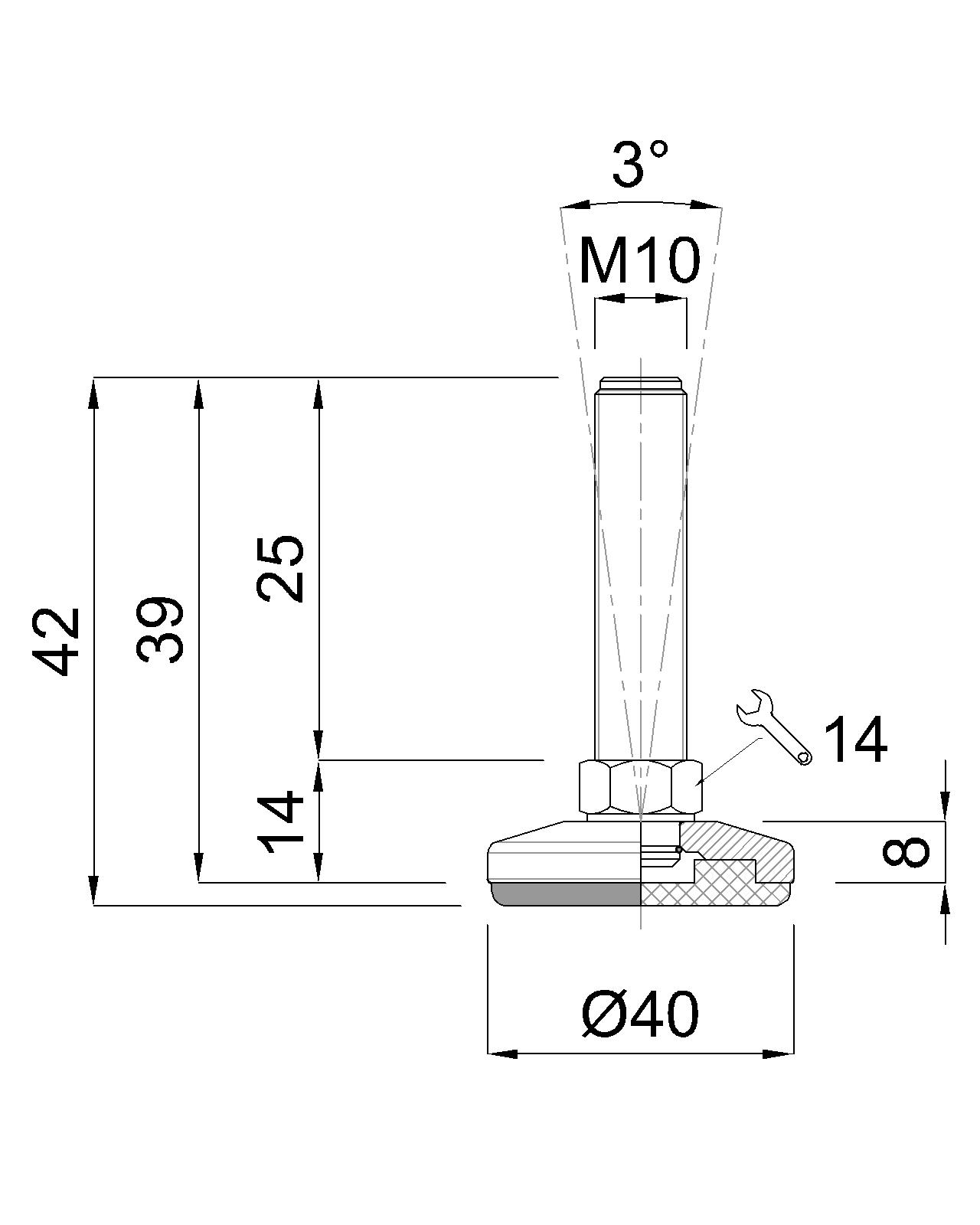

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
