Levelling foot MASSIV Stainless Steel, Ø 150 mm, M30 x 125 mm, Drills, NBR
EAN
4061408078868
Type
45815239/G
Introducing the MASSIV Stainless Steel Leveling Foot: featuring a robust diameter of 150 mm, a maximum static load of 55,000 N, and an articulated screw angle of 5°. Ideal for precise height adjustments in demanding environments.
| Quantity | Price |
|---|---|
| From 1 |
€99.12*
|
| From 13 |
€93.11*
|
| From 25 |
€87.10*
|
| From 50 |
€82.90*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 125 |
| Balancing angle: | 5° |

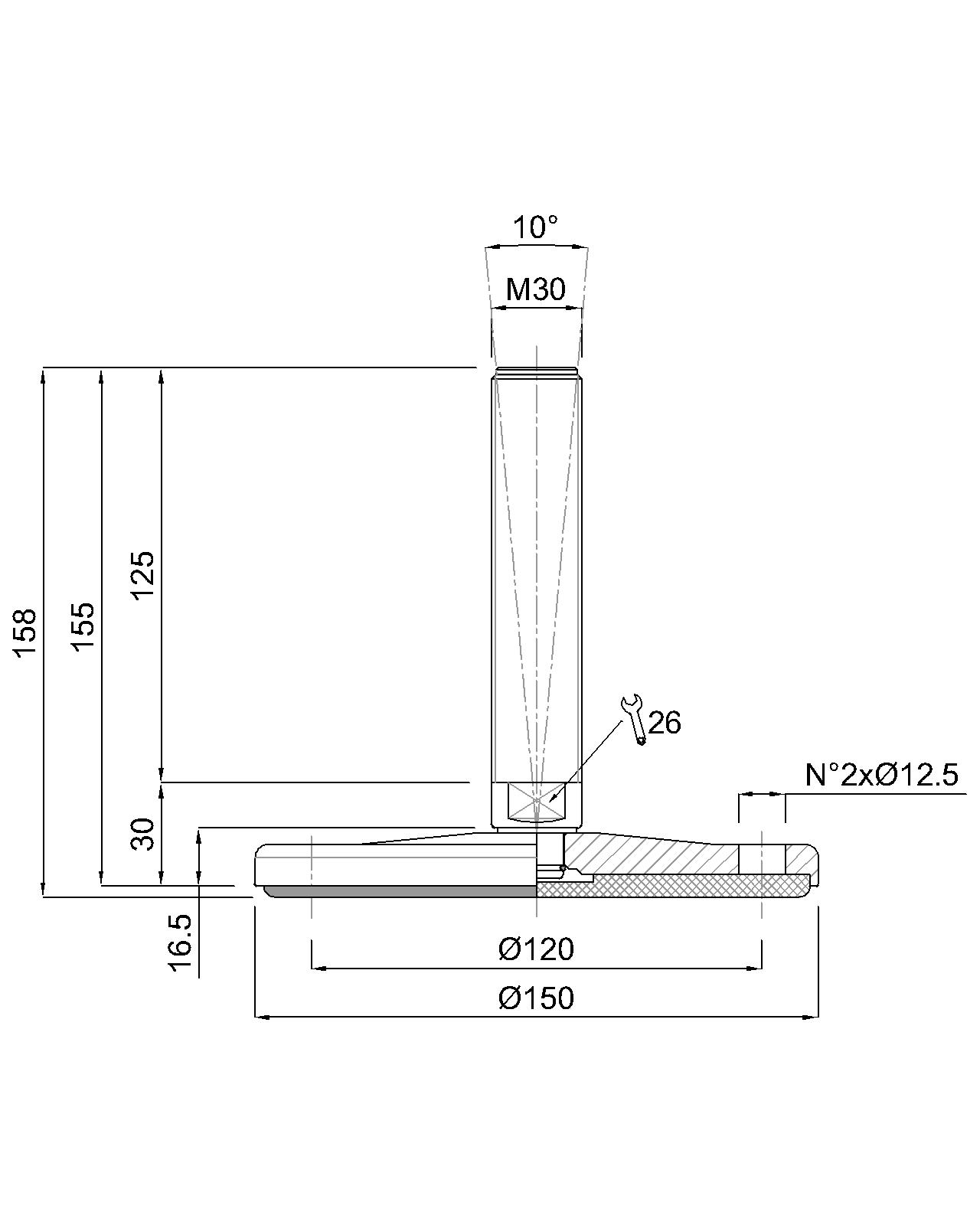

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 150 mm, M30 x 125 mm, Stainlees steel, Total height 158 mm, Articulated screw 5°, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 55.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
