Levelling foot MASSIV Stainless Steel, Ø 120 mm, M16 x 50 mm, NBR
EAN
4061408076956
Type
45815062
Ensure stability and precision with the MASSIV Stainless Steel Levelling Foot. Designed for exceptional load support up to 40,000 N, it features a robust 120 mm base, an articulated screw for 5° adjustment, and non-slip NBR for secure placement.
| Quantity | Price |
|---|---|
| From 1 |
€46.96*
|
| From 13 |
€44.11*
|
| From 25 |
€41.27*
|
| From 50 |
€39.27*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 50 |
| Balancing angle: | 5° |

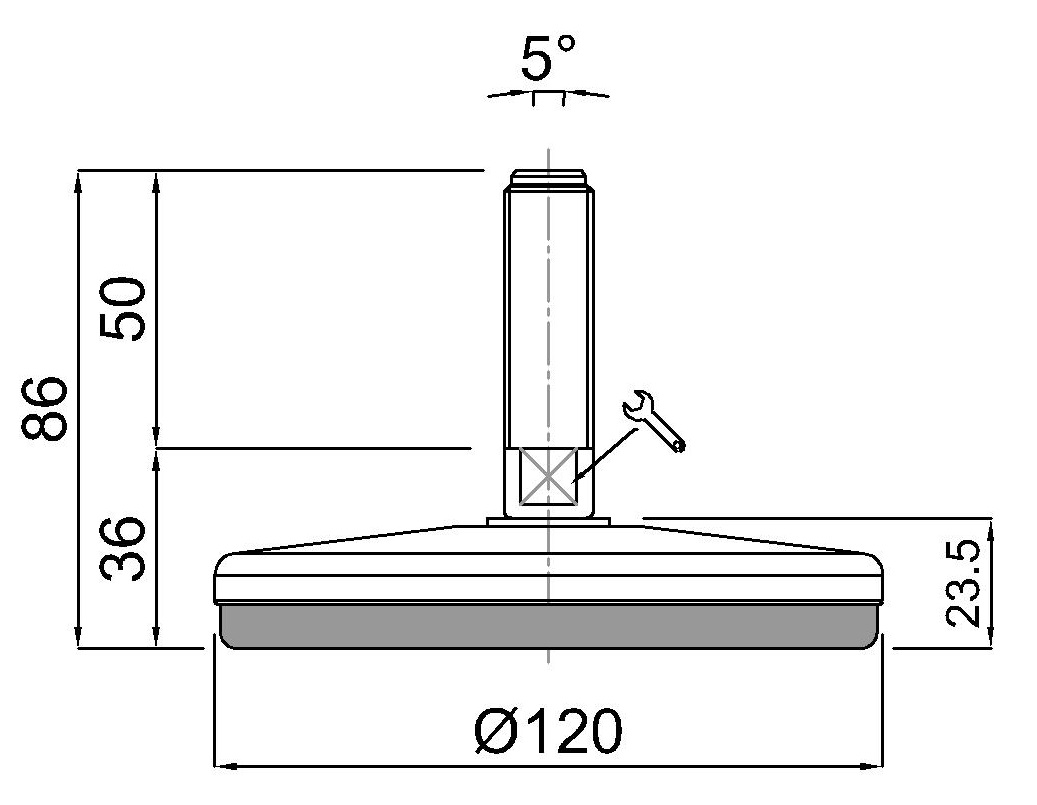

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 120 mm, M16 x 50 mm, Stainlees steel, Total height 86 mm, Articulated screw 5°, Antislip NBR black, Static load 40.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
