Levelling foot MASSIV Stainless Steel, Ø 150 mm, M20 x 75 mm, Drills
EAN
4061408076321
Type
45815233
Optimize your setups with the MASSIV Stainless Steel Levelling Foot. Featuring a robust 150 mm diameter base, articulating screw, and unparalleled static load capacity of 50,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€72.27*
|
| From 13 |
€67.89*
|
| From 25 |
€63.51*
|
| From 50 |
€60.44*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 131-230 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 75 |
| Balancing angle: | 5° |
| Hygiene: | No |

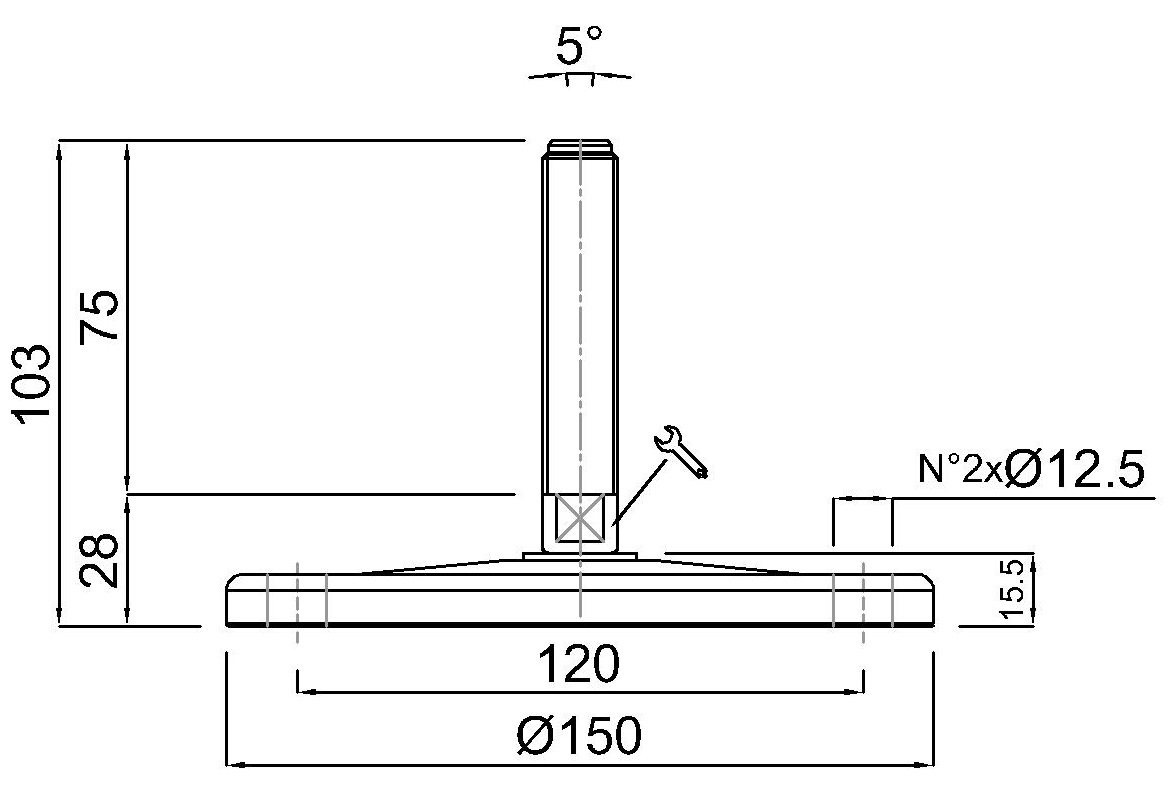

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 150 mm, M20 x 75 mm, Stainlees steel, Total height 104 mm, Articulated screw 5°, Bore holes Ø 12,5 mm, Static load 50.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
