Levelling foot MASSIV Stainless Steel, Ø 159 mm, M20 x 100 mm
EAN
4061408075768
Type
45811478
The MASSIV Leveling Foot in stainless steel features a 159 mm base diameter and a robust M20 x 100 mm spindle, ensuring a static load capacity of 50,000 N. Ideal for precise leveling and stability.
| Quantity | Price |
|---|---|
| From 1 |
€81.18*
|
| From 13 |
€76.26*
|
| From 25 |
€71.34*
|
| From 50 |
€67.90*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 131-230 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 100 |
| Balancing angle: | 10° |
| Hygiene: | No |

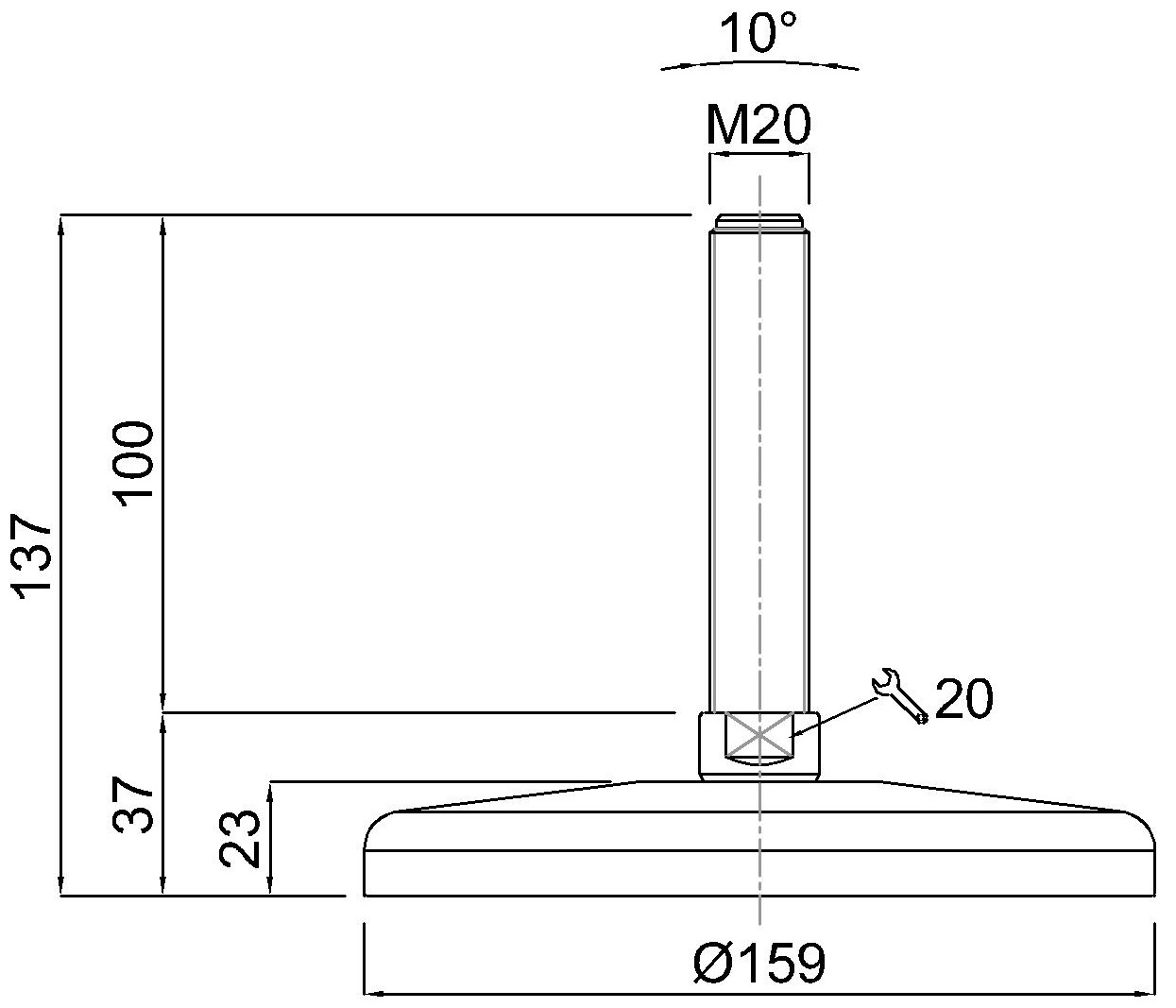

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 159 mm, M20 x 100 mm, Stainlees steel, Total height 137 mm, Articulated screw 10°, Static load 50.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
