Levelling foot MASSIV Stainless Steel, Ø 159 mm, M20 x 100 mm, Drills
EAN
4061408075751
Type
45812468
Discover the MASSIV Stainless Steel Levelling Foot, featuring a robust Ø 159 mm base and M20 x 100 mm spindle, designed for static loads up to 50,000 N. Ideal for precise leveling in demanding environments.
| Quantity | Price |
|---|---|
| From 1 |
€80.16*
|
| From 13 |
€75.30*
|
| From 25 |
€70.44*
|
| From 50 |
€67.04*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 131-230 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 100 |
| Balancing angle: | 0° |
| Hygiene: | No |

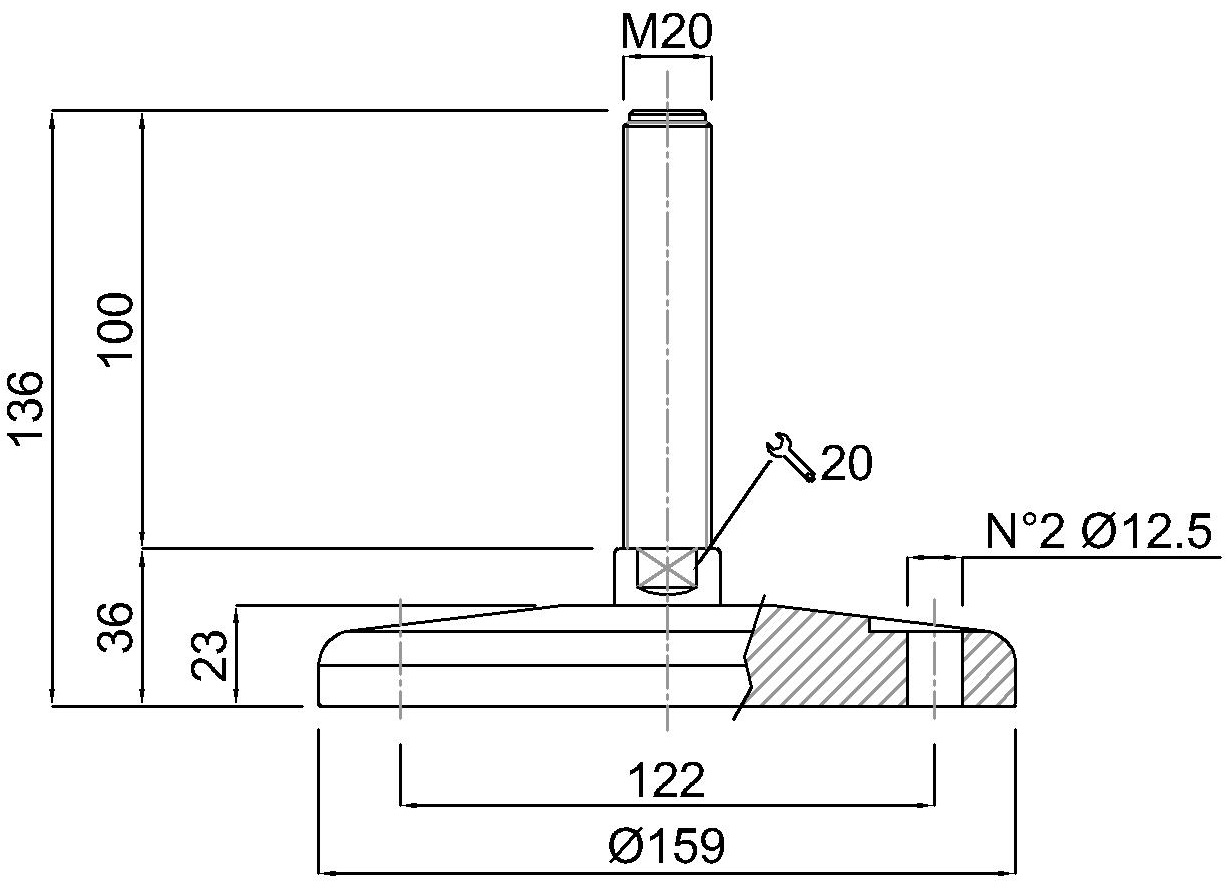

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 159 mm, M20 x 100 mm, Stainlees steel, Total height 136 mm, Bore holes Ø 12,5 mm, Static load 50.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
