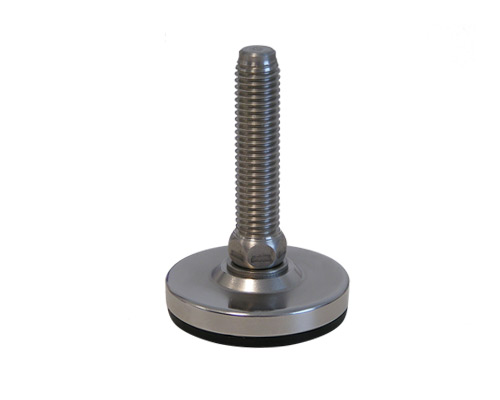

Levelling foot MASSIV Stainless Steel, Ø 50 mm, M10 x 25 mm, NBR
EAN
4061408073214
Type
45815000/50
Discover the MASSIV Stainless Steel Levelling Foot, designed for precision and stability. With a load capacity of 12,000 N and a 5° articulated design, it ensures reliable support in various applications.
| Quantity | Price |
|---|---|
| From 1 |
€11.78*
|
| From 13 |
€11.07*
|
| From 25 |
€10.35*
|
| From 50 |
€9.85*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 41-50 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 10 |
| Spindle length (mm): | 25 |
| Balancing angle: | 5° |

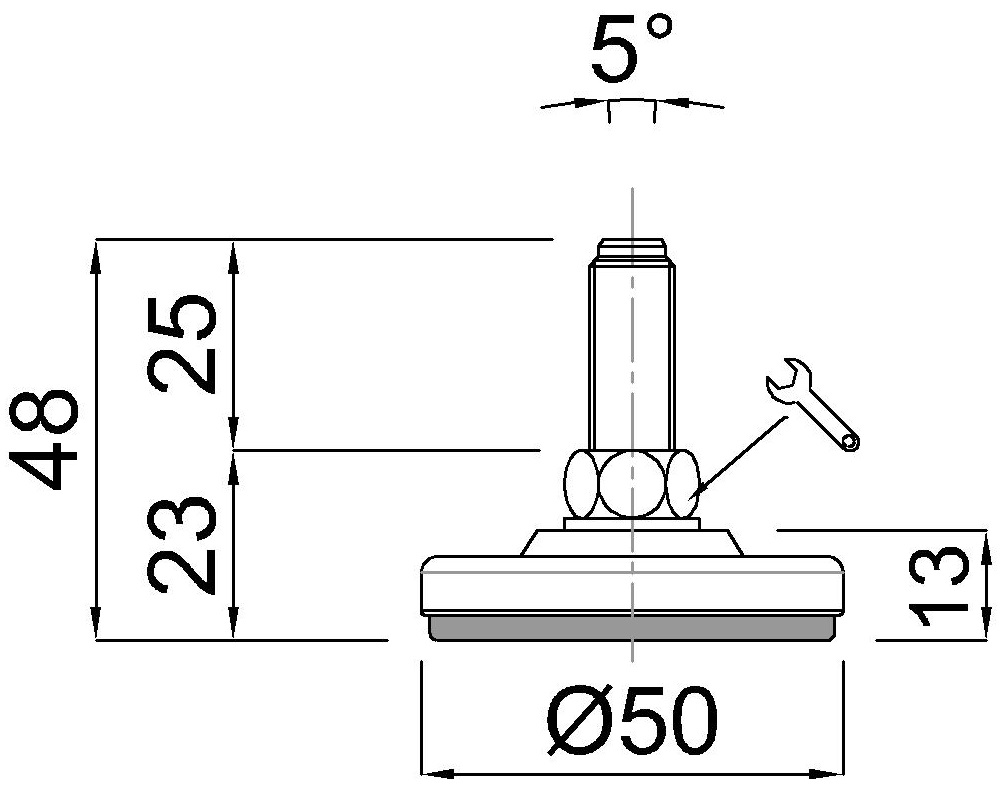

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 50 mm, M10 x 25 mm, Stainlees steel, Total height 50 mm, Articulated screw 5°, Antislip NBR black, Static load 12.000 N
