Levelling foot MASSIV Stainless Steel, Ø 40 mm, M12 x 100 mm
EAN
4061408073146
Type
4583812100
Ensure stability and precision with the MASSIV Stainless Steel Levelling Foot. Featuring a 40 mm base diameter, 100 mm spindle length, and a static load capacity of 9,000 N, it's ideal for demanding applications.
| Quantity | Price |
|---|---|
| From 1 |
€10.97*
|
| From 13 |
€10.31*
|
| From 25 |
€9.64*
|
| From 50 |
€9.18*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 31-40 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 100 |
| Balancing angle: | 3° |
| Hygiene: | No |

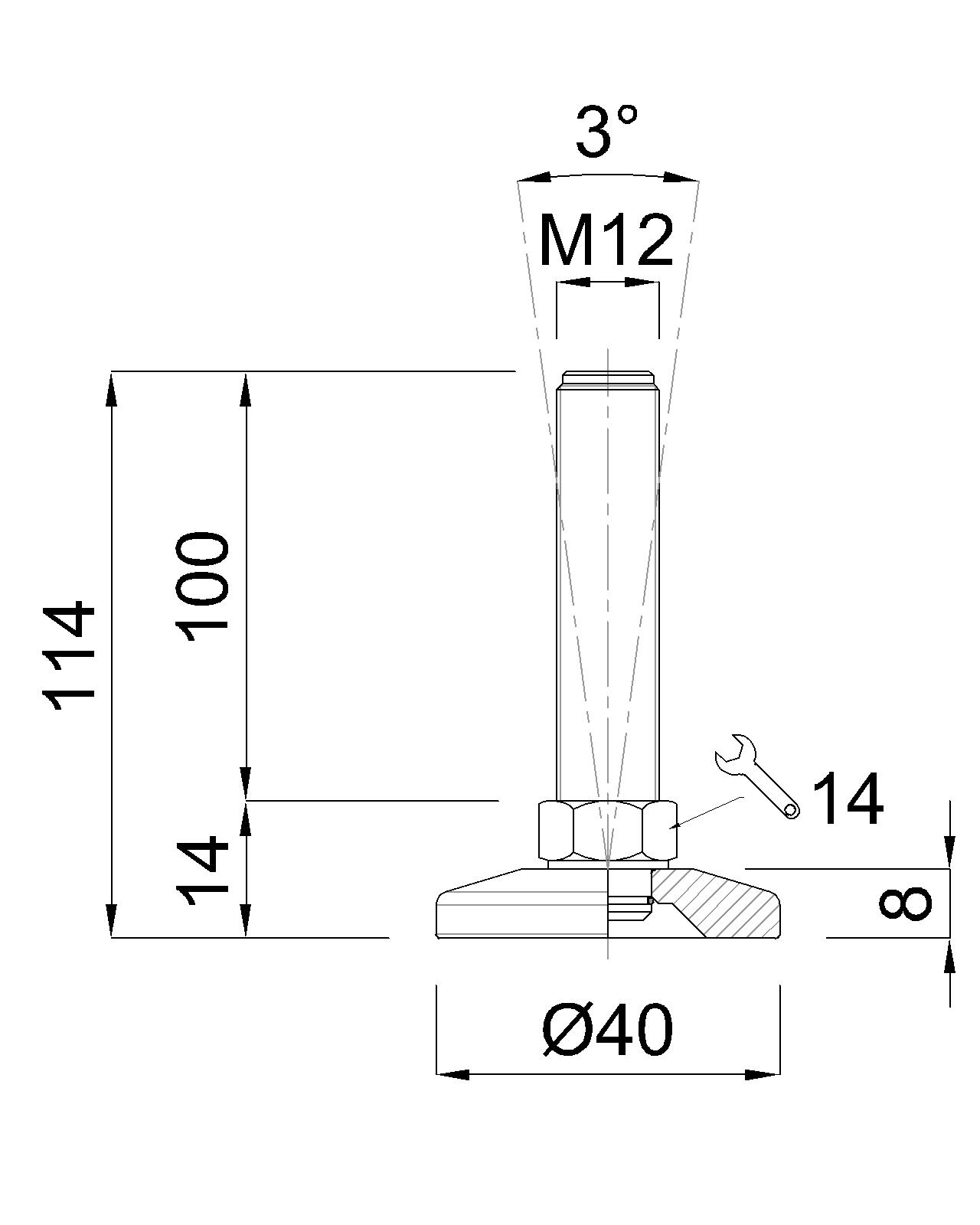

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 40 mm, M12 x 100 mm, Stainlees steel, Total height 114 mm, Articulated screw 3°, Static load 9.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
