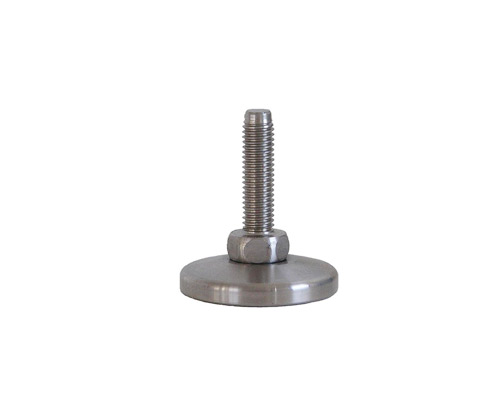

Levelling foot MASSIV Stainless Steel, Ø 40 mm, M12 x 50 mm
Discover the MASSIV Leveling Foot in stainless steel, Ø 40 mm, designed for robust applications. With a static load capacity of 9,000 N and an articulated screw adjusting to 3°, it ensures stability and precision.
| Quantity | Price |
|---|---|
| From 1 |
€9.60*
|
| From 13 |
€9.02*
|
| From 25 |
€8.44*
|
| From 50 |
€8.03*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 31-40 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 50 |
| Balancing angle: | 3° |
| Hygiene: | No |

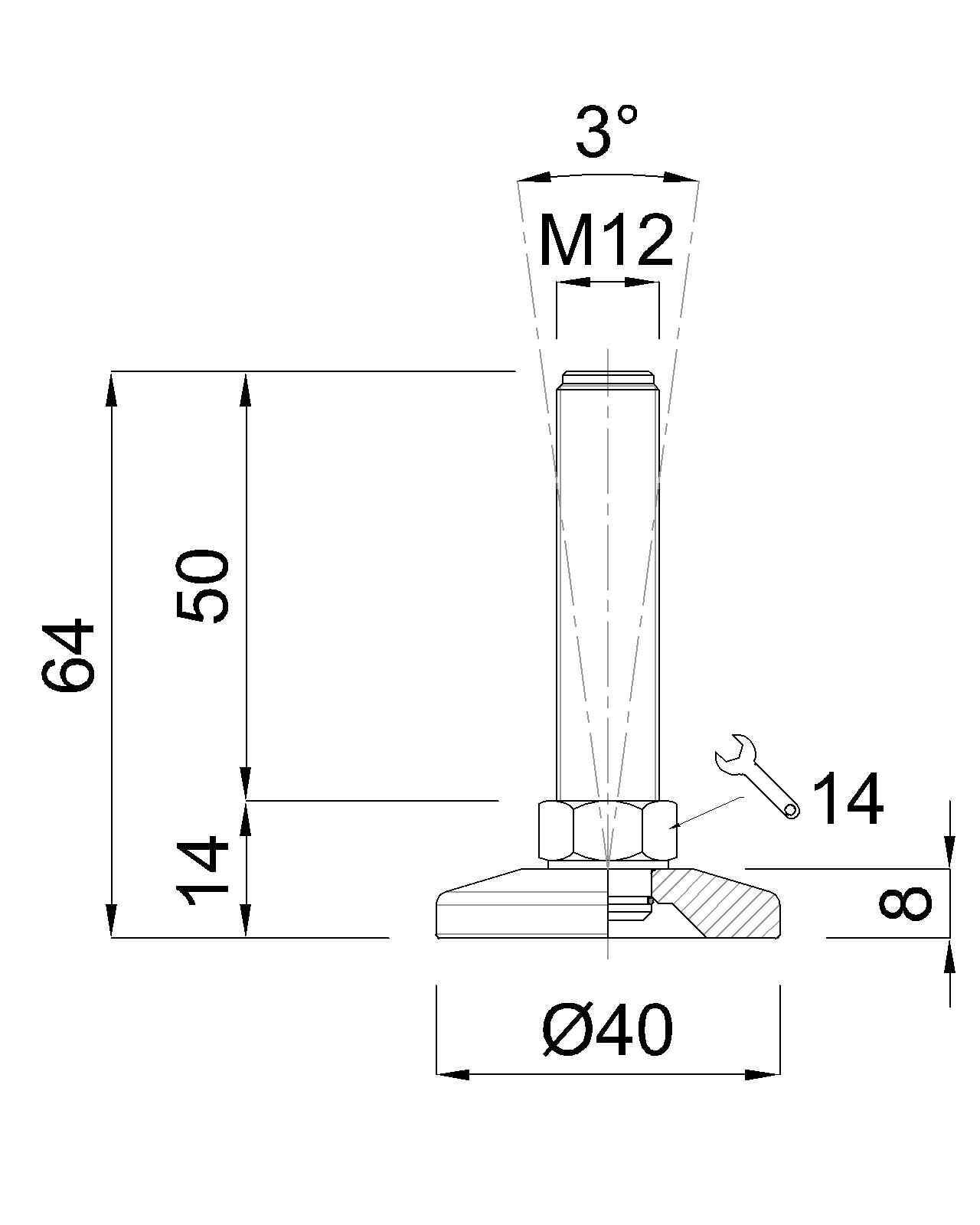

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
