Levelling foot MASSIV Stainless Steel, Ø 40 mm, M10 x 25 mm
EAN
4061408073115
Type
458381025
Introducing the MASSIV Stainless Steel Leveling Foot: engineered for durability with a 40 mm diameter and M10 x 25 mm spindle. Designed to support a static load of 9,000 N, it features a 3° articulated screw for precision adjustments. Ideal for robust applications.
| Quantity | Price |
|---|---|
| From 1 |
€8.78*
|
| From 13 |
€8.25*
|
| From 25 |
€7.71*
|
| From 50 |
€7.34*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 31-40 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 10 |
| Spindle length (mm): | 25 |
| Balancing angle: | 3° |
| Hygiene: | No |

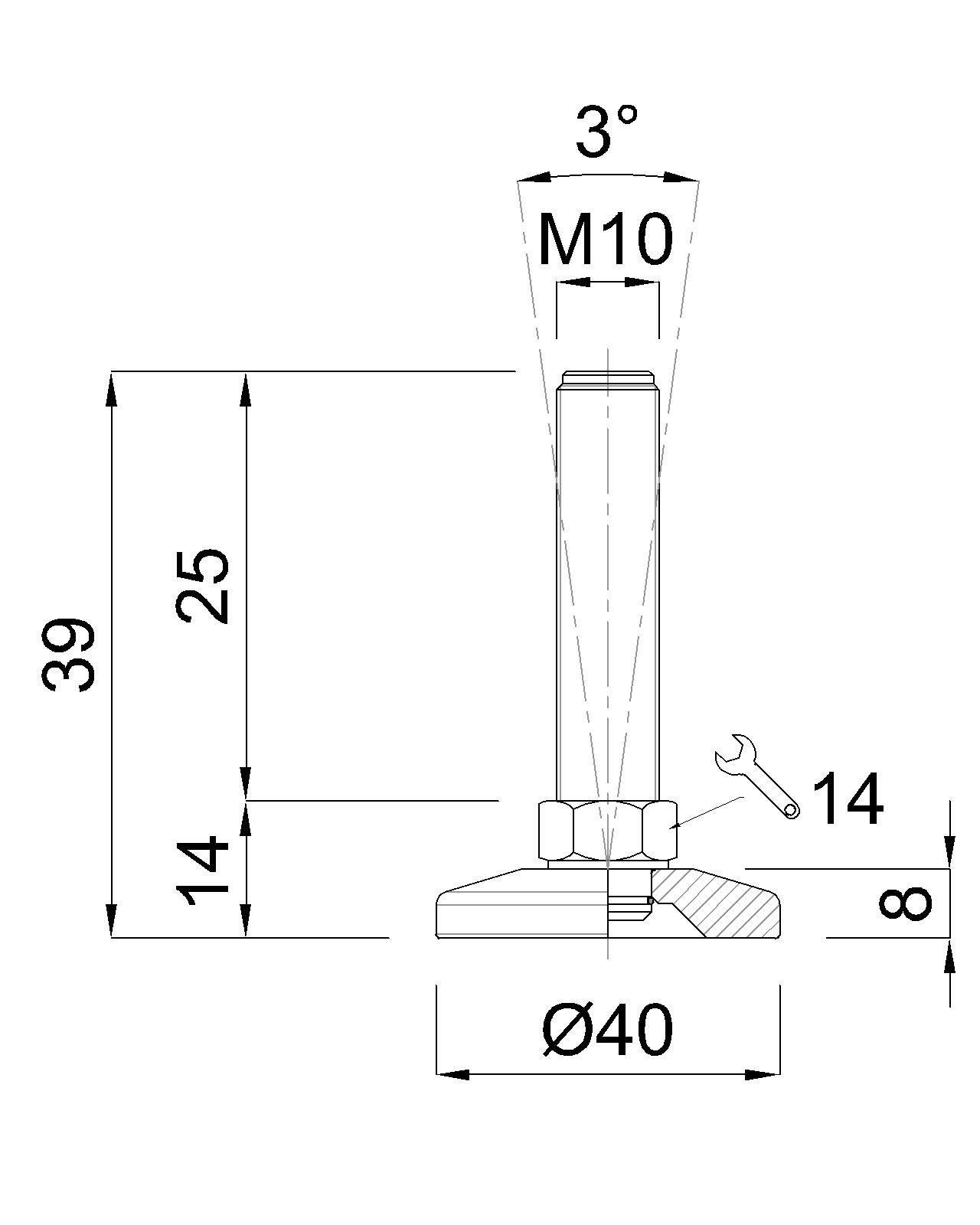

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 40 mm, M10 x 25 mm, Stainlees steel, Total height 39 mm, Articulated screw 3°, Static load 9.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
