Levelling foot MASSIV Stainless Steel, Ø 30 mm, M10 x 50 mm
Discover the MASSIV Stainless Steel Levelling Foot, featuring a 30 mm diameter and M10 x 50 mm thread, designed for precision adjustments with an articulated screw capability of 3° and a static load capacity of 8,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€7.97*
|
| From 13 |
€7.49*
|
| From 25 |
€7.00*
|
| From 50 |
€6.67*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Ø range base plate (mm): | 21-30 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 10 |
| Spindle length (mm): | 50 |
| Balancing angle: | 3° |

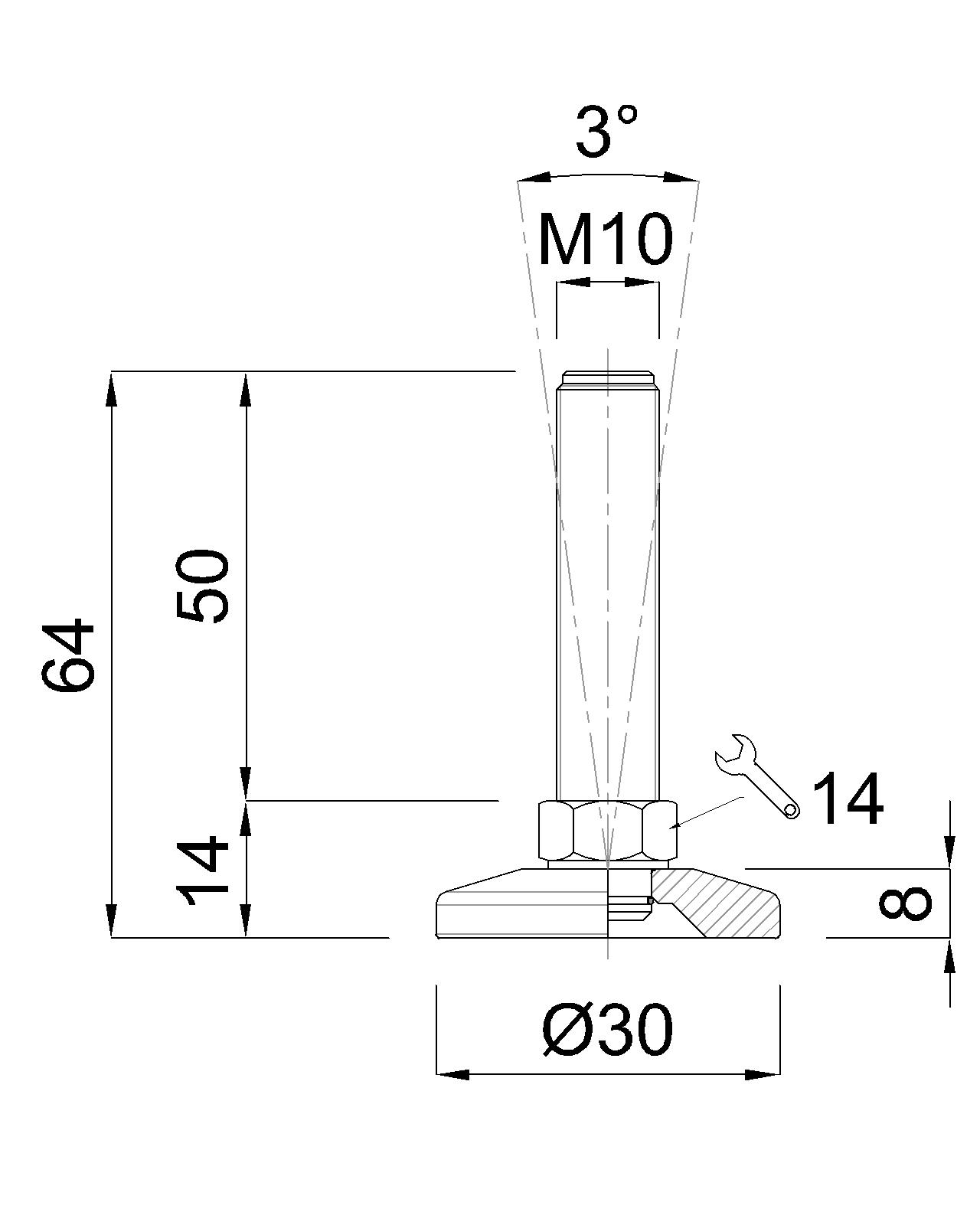

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
