Levelling foot MASSIV Stainless Steel, Ø 30 mm, M10 x 25 mm
EAN
4061408073061
Type
458301025
Discover the MASSIV Stainless Steel Levelling Foot designed for precision and stability. With a robust load capacity of 8,000 N and a versatile articulated screw, it ensures reliable support in any application.
| Quantity | Price |
|---|---|
| From 1 |
€7.61*
|
| From 13 |
€7.15*
|
| From 25 |
€6.68*
|
| From 50 |
€6.36*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Ø range base plate (mm): | 21-30 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 10 |
| Spindle length (mm): | 25 |
| Balancing angle: | 3° |

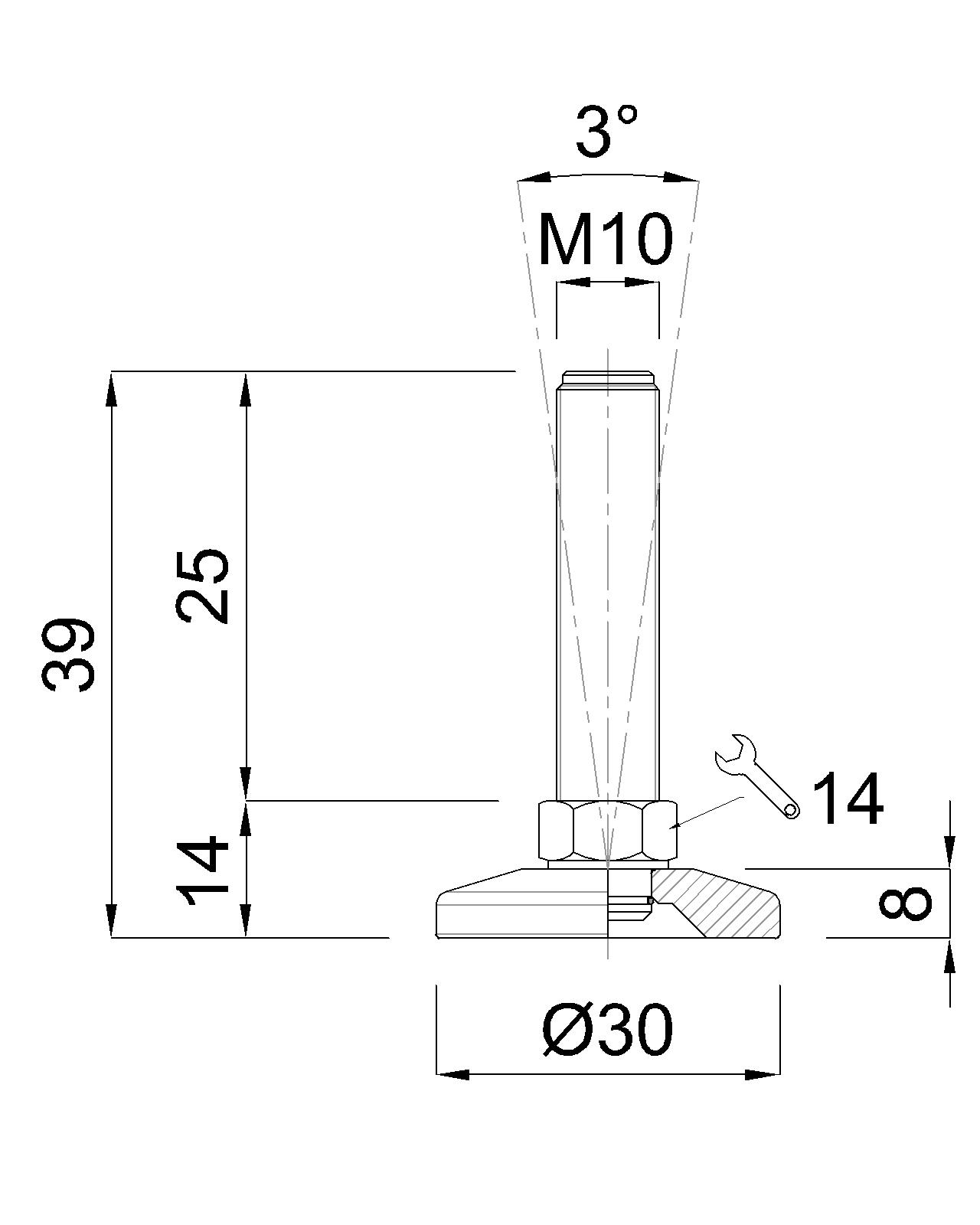

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 30 mm, M10 x 25 mm, Stainlees steel, Total height 39 mm, Articulated screw 3°, Static load 8.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
