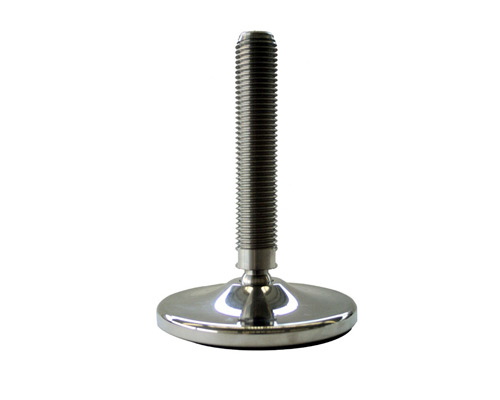

Levelling foot MASSIV Stainless Steel, Ø 140 mm, M30 x 175 mm
Introducing our MASSIV Stainless Steel Levelling Foot, designed for robust stability with a 140 mm diameter and a static load capacity of 70,000 N. Its articulated screw allows adjustment up to 30°, ensuring precision in various applications.
| Quantity | Price |
|---|---|
| From 1 |
€88.97*
|
| From 13 |
€83.58*
|
| From 25 |
€78.18*
|
| From 50 |
€74.41*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 131-230 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 175 |
| Balancing angle: | 30° |
| Hygiene: | No |

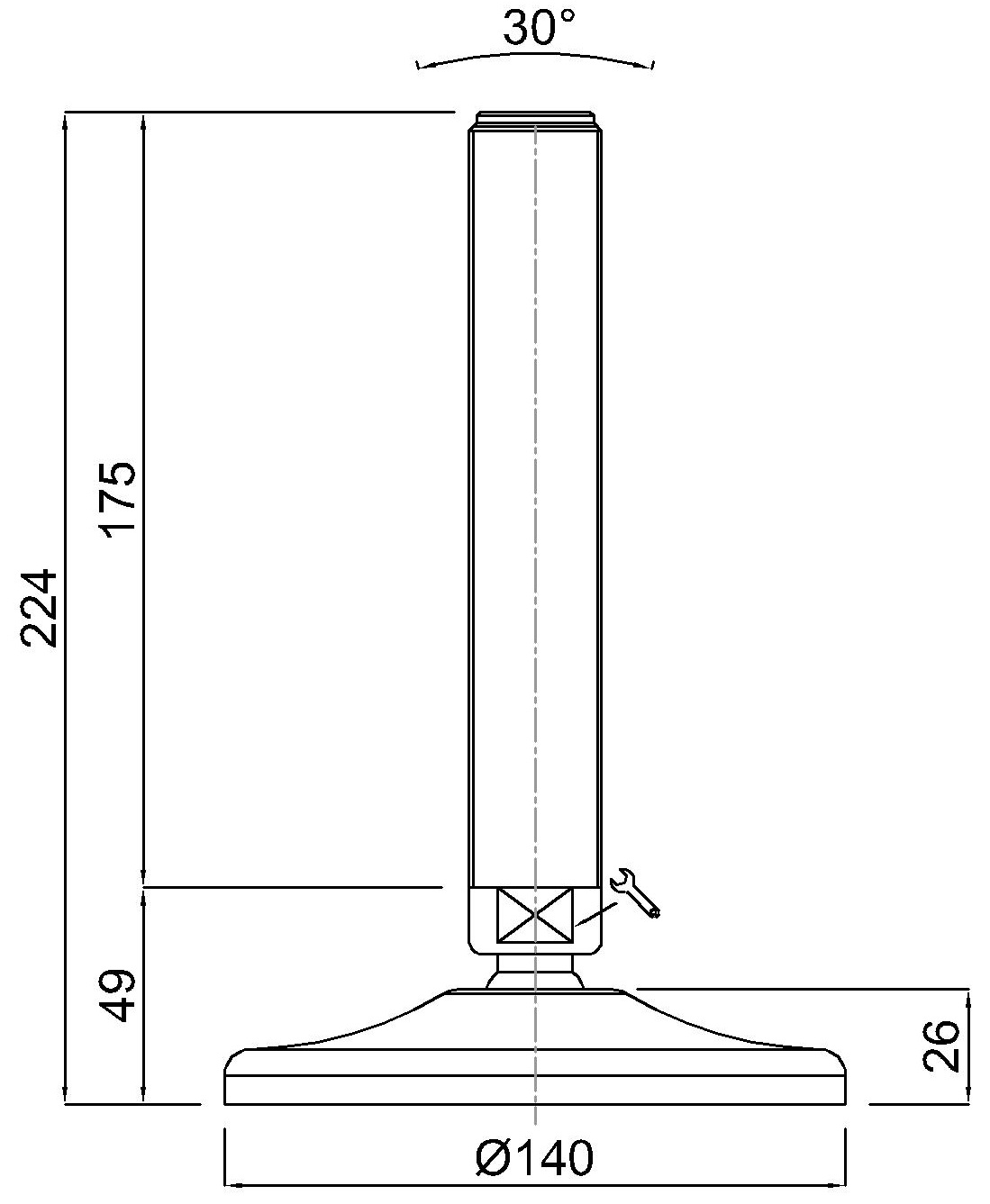

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
