Levelling foot MASSIV Stainless Steel, Ø 140 mm, M30 x 150 mm
EAN
4061408072989
Type
45810924
Discover the MASSIV Levelling Foot in stainless steel, featuring a 140 mm diameter base and a 150 mm articulated screw for precise leveling. With a static load capacity of 70,000 N, it's ideal for heavy-duty applications.
| Quantity | Price |
|---|---|
| From 1 |
€86.97*
|
| From 13 |
€81.70*
|
| From 25 |
€76.43*
|
| From 50 |
€72.74*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 131-230 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 150 |
| Balancing angle: | 30° |
| Hygiene: | No |

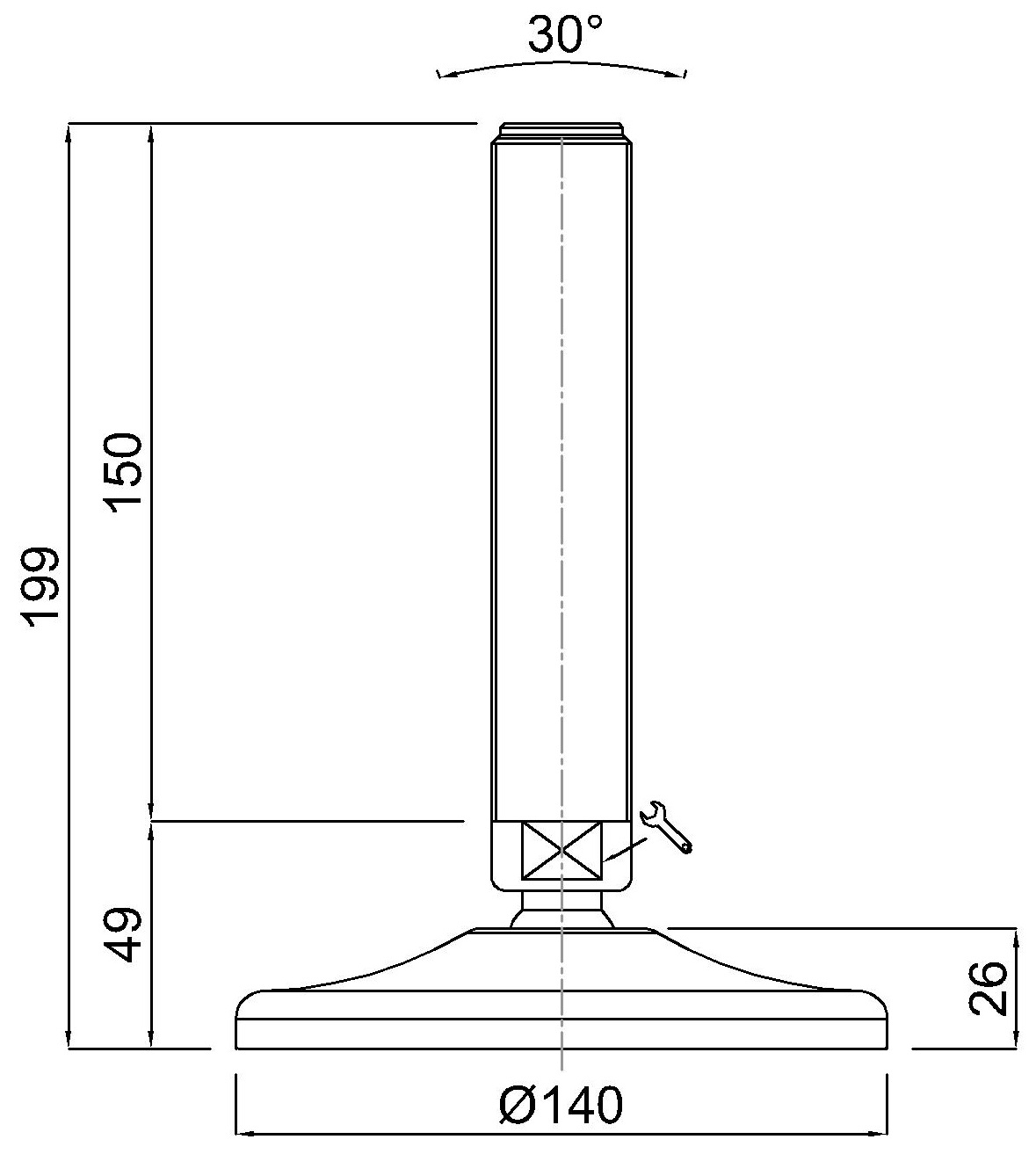

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 140 mm, M30 x 150 mm, Stainlees steel, Total height 199 mm, Articulated screw 30°, Static load 70.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
