Levelling foot MASSIV Stainless Steel, Ø 140 mm, M30 x 125 mm
EAN
4061408072972
Type
45810922
Discover our MASSIV Stainless Steel Levelling Foot, featuring a robust 140 mm base and M30 x 125 mm spindle. With a static load capacity of 70,000 N and 30° articulation, it’s engineered for stability and precision in demanding applications.
| Quantity | Price |
|---|---|
| From 1 |
€84.55*
|
| From 13 |
€79.42*
|
| From 25 |
€74.30*
|
| From 50 |
€70.71*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 131-230 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 125 |
| Balancing angle: | 30° |
| Hygiene: | No |

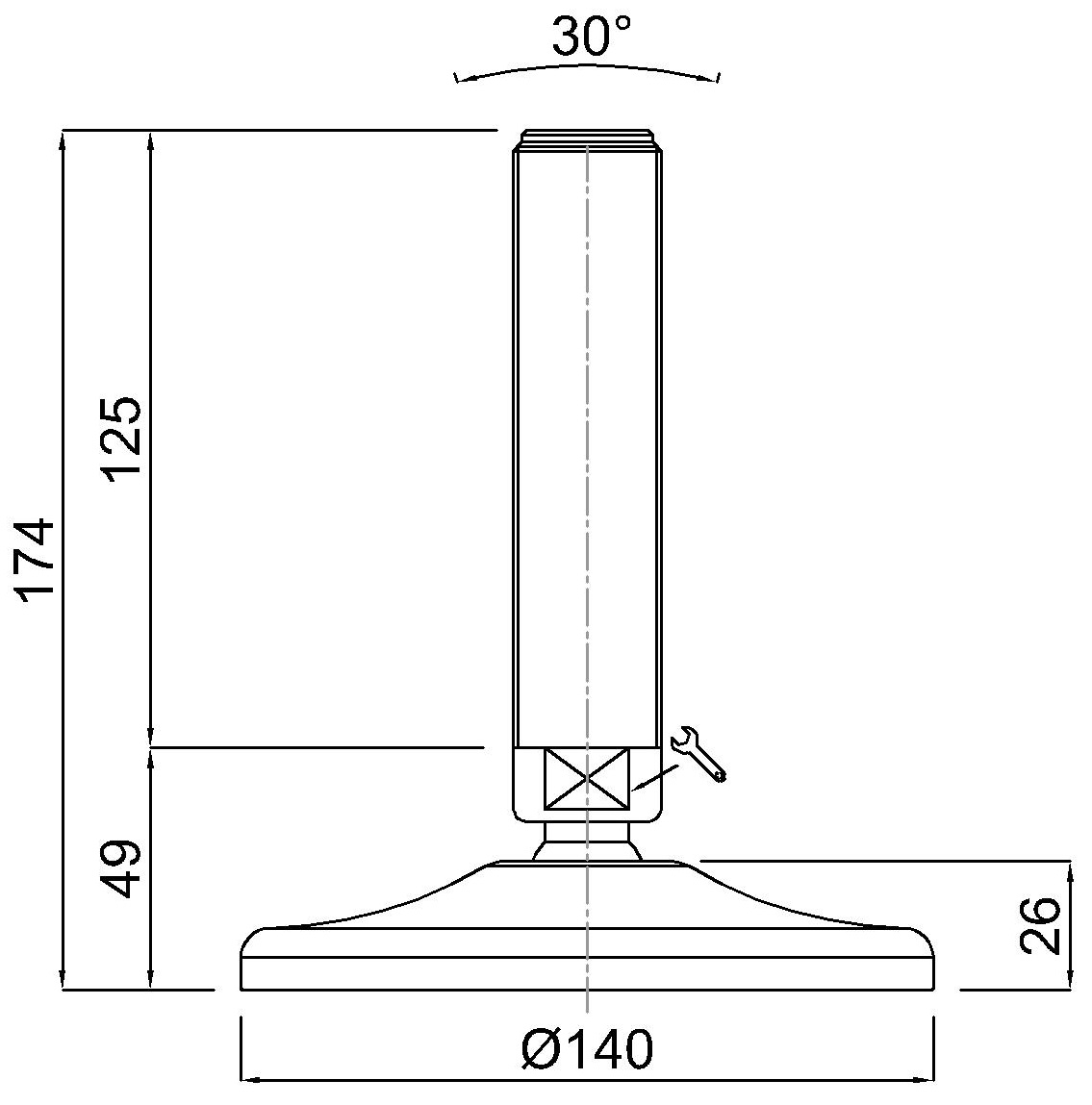

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 140 mm, M30 x 125 mm, Stainlees steel, Total height 174 mm, Articulated screw 30°, Static load 70.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
