Levelling foot MASSIV Stainless Steel, Ø 140 mm, M24 x 175 mm, NBR
Enhance stability with the MASSIV Stainless Steel Levelling Foot. With a 140 mm diameter and a robust static load capacity of 60,000 N, it features an articulated screw for 30° adjustments and a non-slip NBR base.
| Quantity | Price |
|---|---|
| From 1 |
€87.17*
|
| From 13 |
€81.89*
|
| From 25 |
€76.60*
|
| From 50 |
€72.91*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 175 |
| Balancing angle: | 30° |

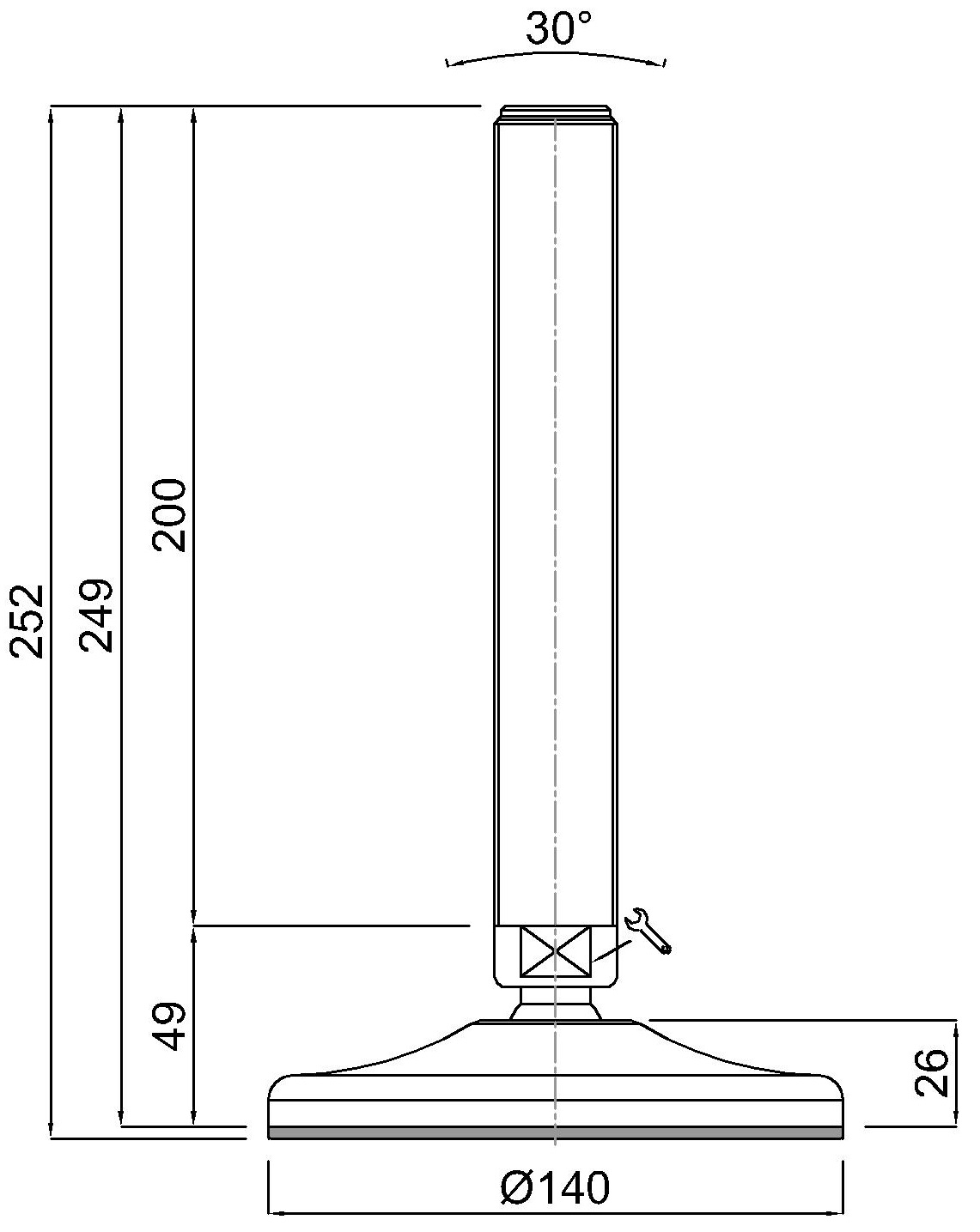

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
