Levelling foot MASSIV Stainless Steel, Ø 140 mm, M20 x 125 mm
Discover the MASSIV Stainless Steel Levelling Foot, engineered for precision with a 140 mm diameter and M20 x 125 mm spindle. Supports static loads up to 50,000 N, featuring a durable articulated screw design for optimal adjustment.
| Quantity | Price |
|---|---|
| From 1 |
€83.01*
|
| From 13 |
€77.98*
|
| From 25 |
€72.95*
|
| From 50 |
€69.43*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 131-230 |
| Vibration damping: | No |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 125 |
| Balancing angle: | 30° |
| Hygiene: | No |

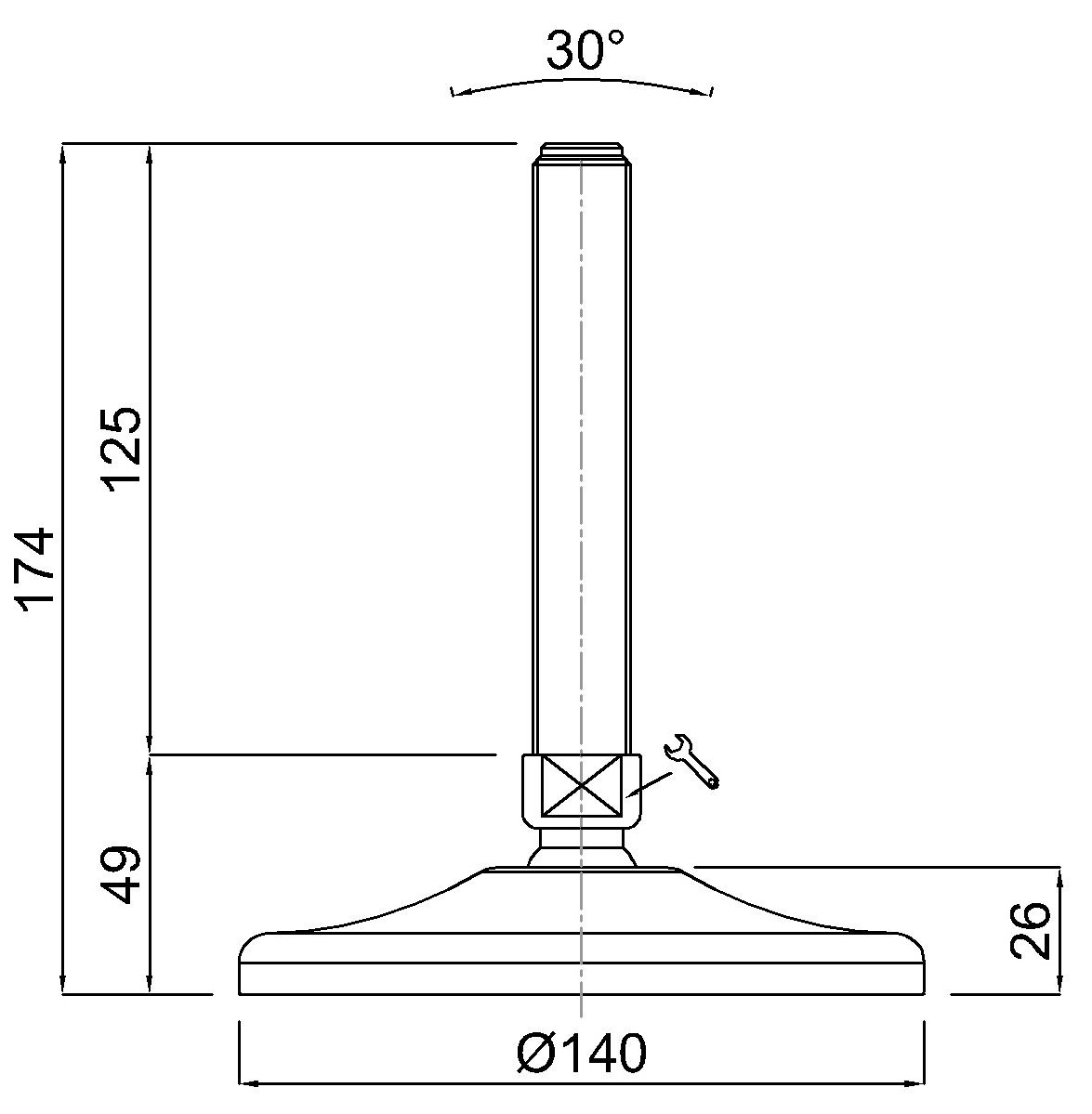

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
