Levelling foot MASSIV Stainless Steel, Ø 120 mm, M16 x 150 mm, Drills
EAN
4061408071722
Type
45815223
Introducing the MASSIV Stainless Steel Leveling Foot: engineered for durability and stability with a 120 mm diameter pad, M16 x 150 mm spindle, and a static load capacity of 40,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€49.68*
|
| From 13 |
€46.67*
|
| From 25 |
€43.66*
|
| From 50 |
€41.55*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 111-130 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 150 |
| Balancing angle: | 5° |
| Hygiene: | No |

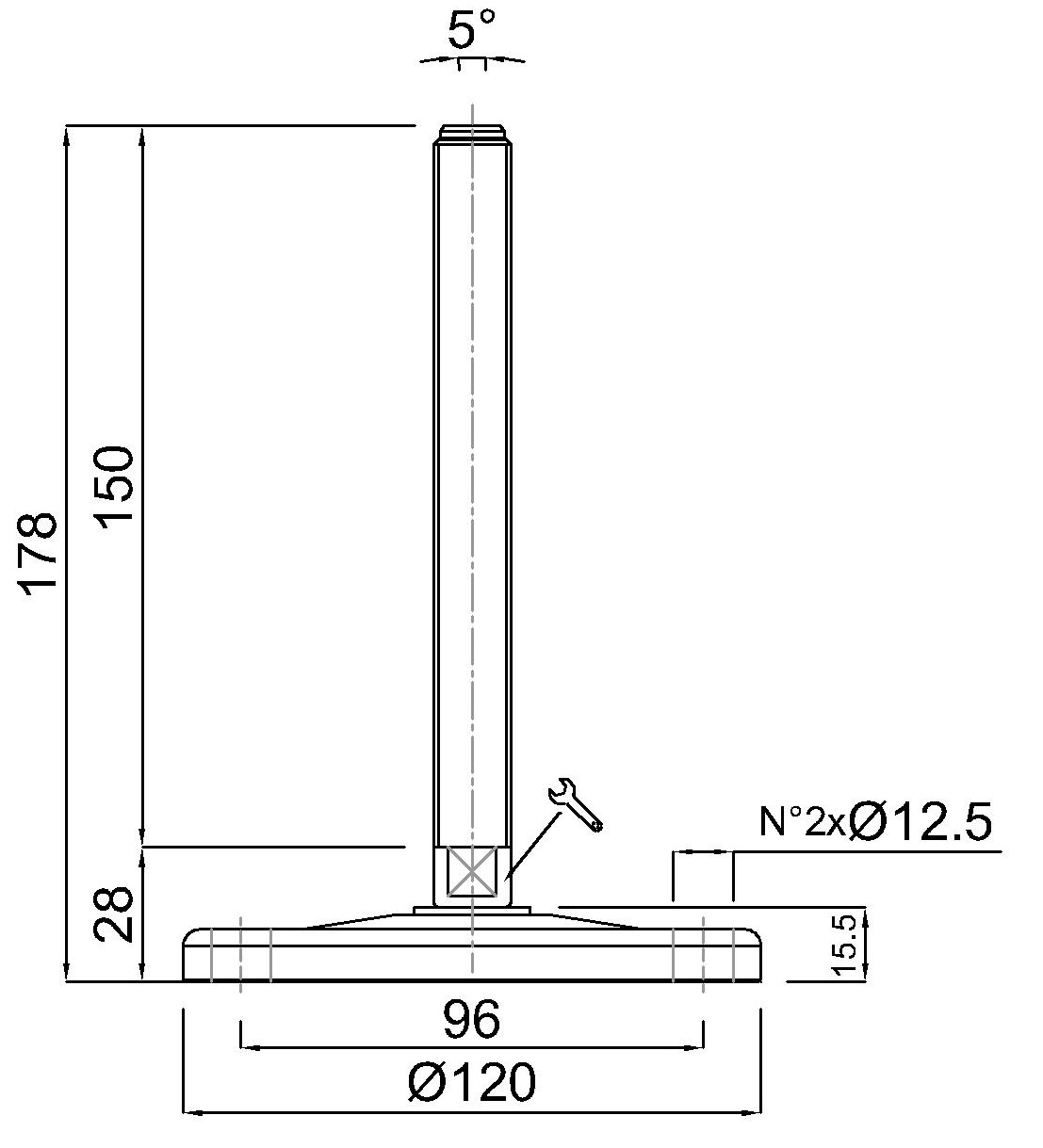

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 120 mm, M16 x 150 mm, Stainlees steel, Total height 179 mm, Articulated screw 5°, Bore holes Ø 12,5 mm, Static load 40.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
