Levelling foot MASSIV Stainless Steel, Ø 120 mm, M20 x 125 mm, Drills
Elevate your equipment stability with our MASSIV Stainless Steel Levelling Foot. Designed for durability, it supports static loads up to 40,000 N, featuring a 120 mm diameter base and articulated screw for precise adjustments.
| Quantity | Price |
|---|---|
| From 1 |
€51.58*
|
| From 13 |
€48.45*
|
| From 25 |
€45.33*
|
| From 50 |
€43.14*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 111-130 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 125 |
| Balancing angle: | 5° |
| Hygiene: | No |

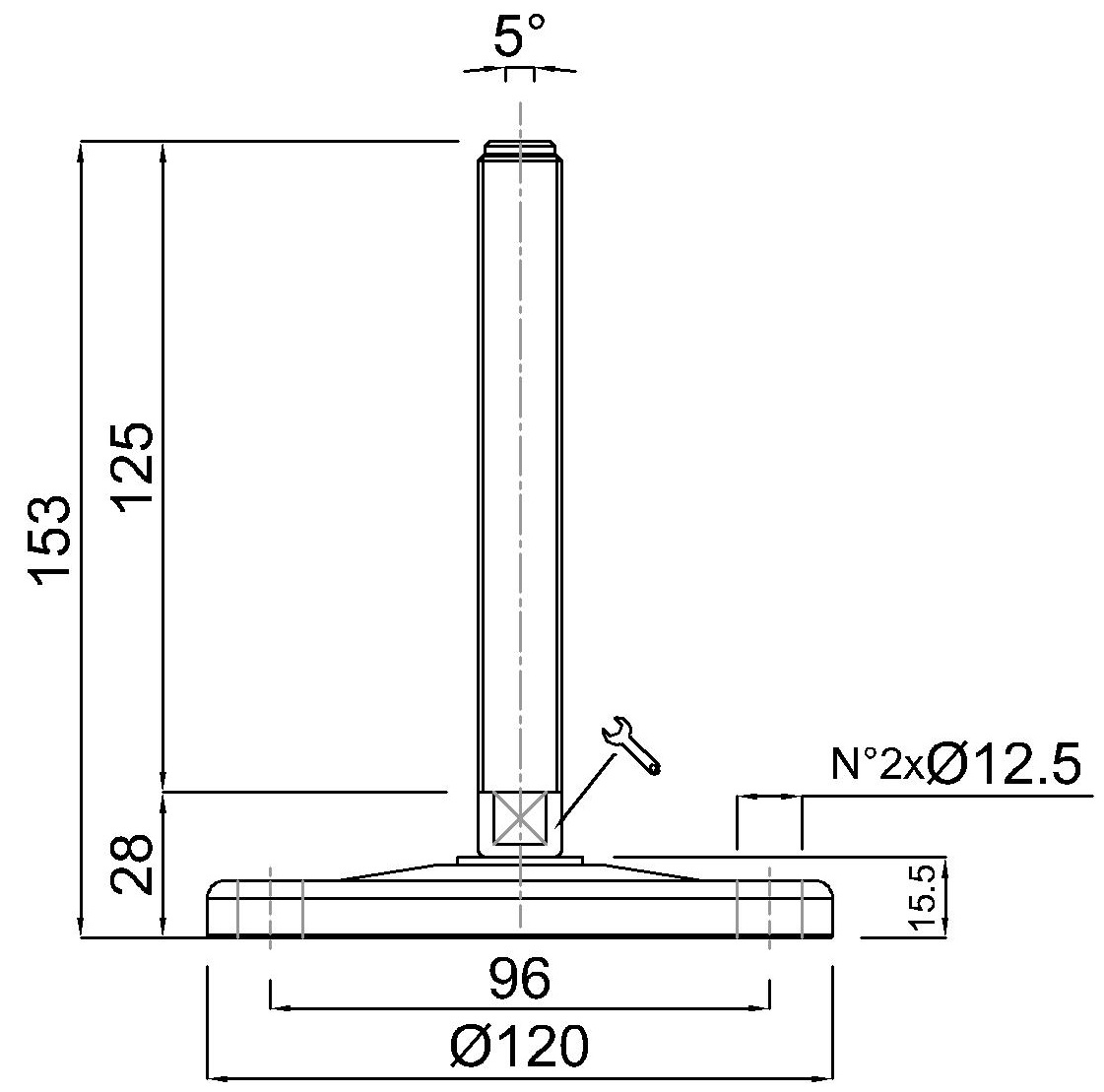

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
