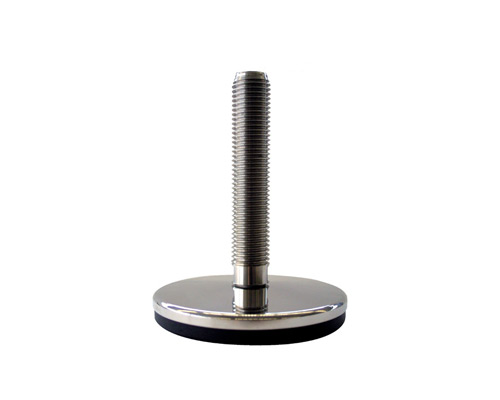

Levelling foot MASSIV Stainless Steel, Ø 150 mm, M20 x 125 mm, NBR
Experience precision and stability with our MASSIV Stainless Steel Levelling Foot. Designed for heavy loads up to 50,000 N, its articulated screw allows for a 5° adjustment, ensuring optimal performance.
| Quantity | Price |
|---|---|
| From 1 |
€76.00*
|
| From 13 |
€71.39*
|
| From 25 |
€66.79*
|
| From 50 |
€63.56*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 125 |
| Balancing angle: | 5° |

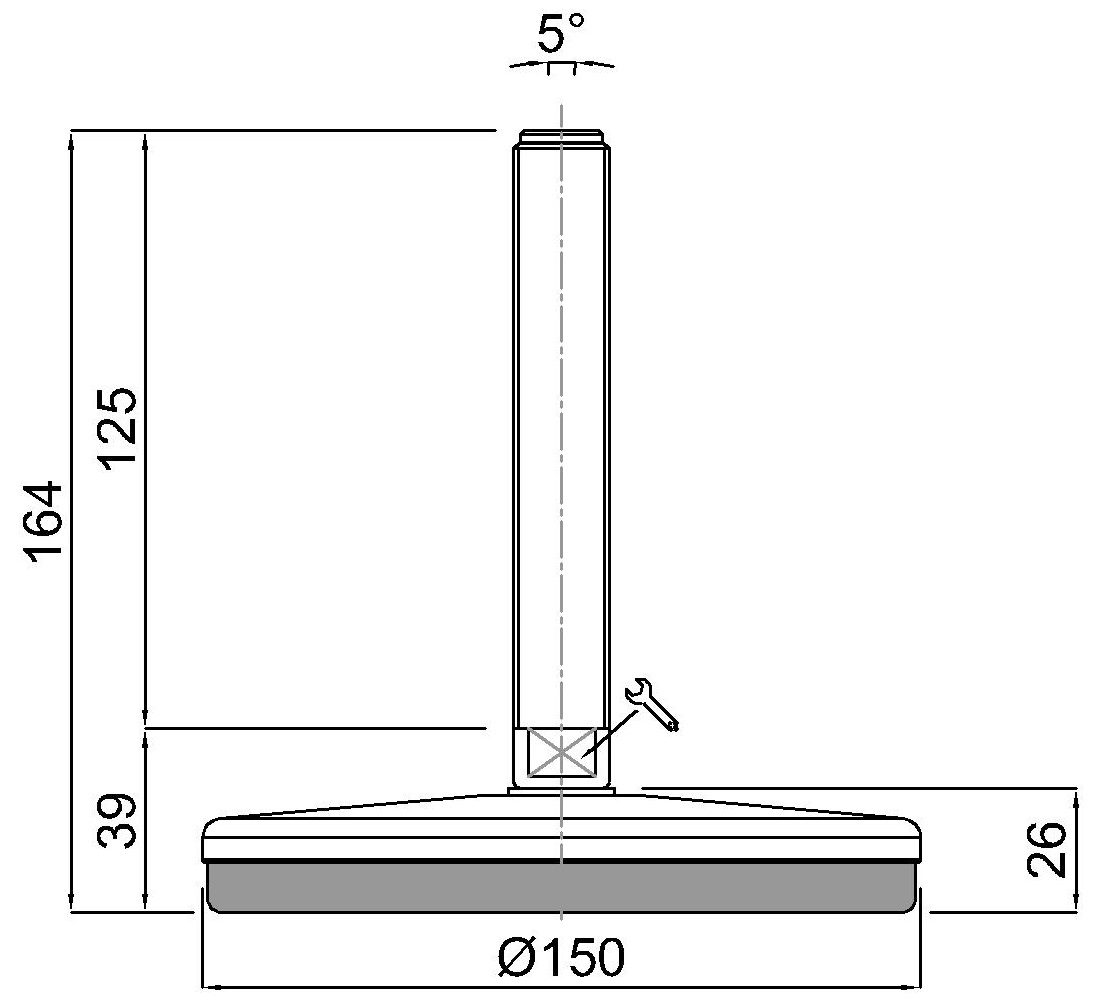

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
