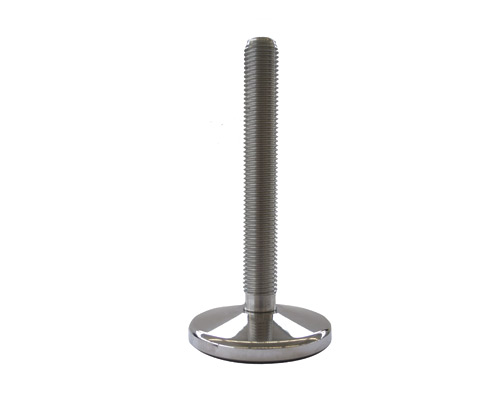

Levelling foot MASSIV Stainless Steel, Ø 159 mm, M20 x 150 mm, NBR
Discover the MASSIV Levelling Foot in stainless steel, designed for unmatched stability and precision. With a load capacity of 50,000 N, 10° articulation, and a non-slip NBR pad, it's ideal for various applications.
| Quantity | Price |
|---|---|
| From 1 |
€90.09*
|
| From 13 |
€84.63*
|
| From 25 |
€79.17*
|
| From 50 |
€75.35*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 150 |
| Balancing angle: | 10° |

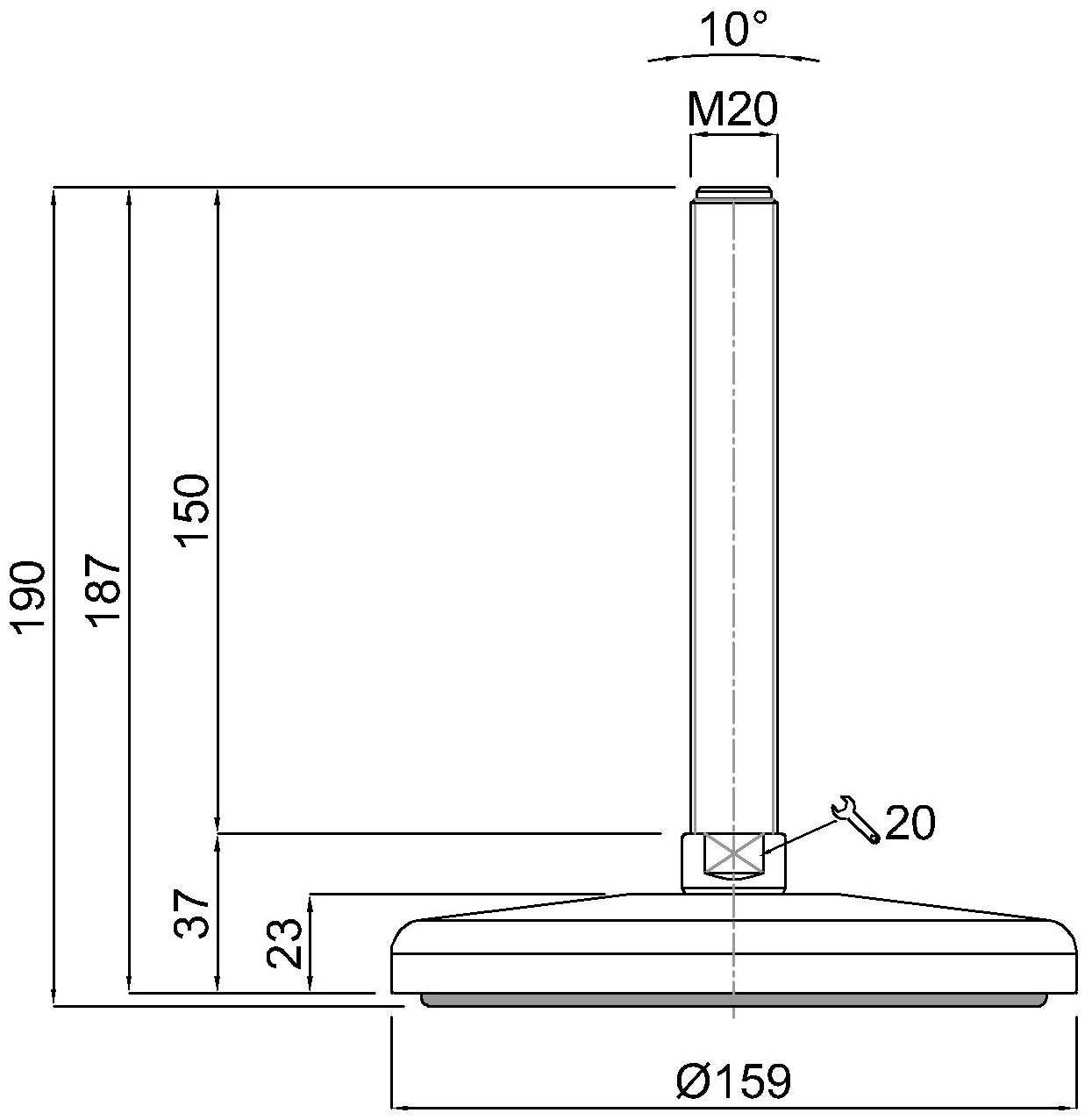

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
