Levelling foot MASSIV Stainless Steel, Ø 120 mm, M24 x 200 mm
The MASSIV Stainless Steel Levelling Foot, with a diameter of 120 mm and a static load capacity of 55,000 N, ensures stability and precision for your engineering projects.
| Quantity | Price |
|---|---|
| From 1 |
€71.53*
|
| From 13 |
€67.19*
|
| From 25 |
€62.86*
|
| From 50 |
€59.82*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 111-130 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 200 |
| Balancing angle: | 30° |
| Hygiene: | No |

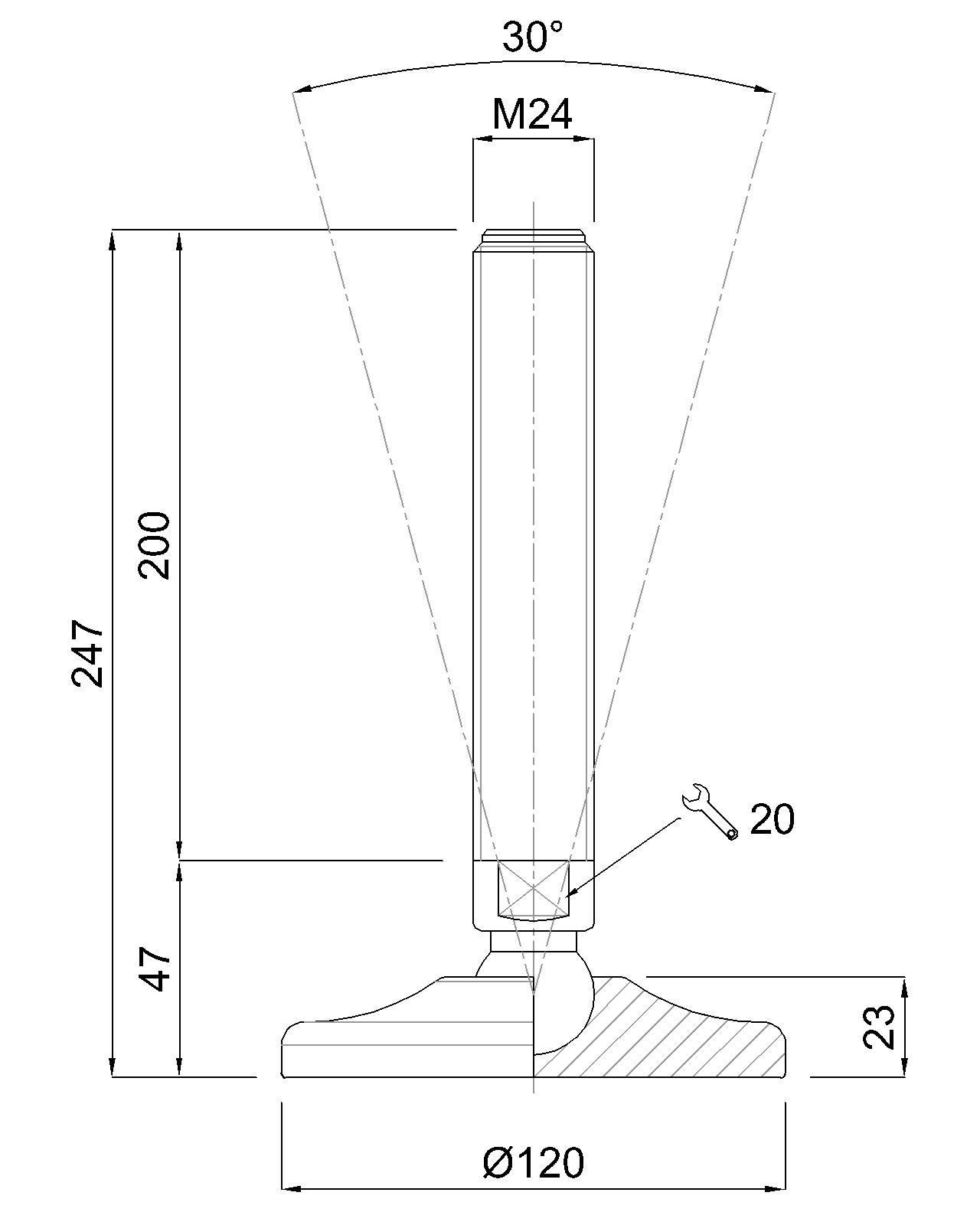

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
