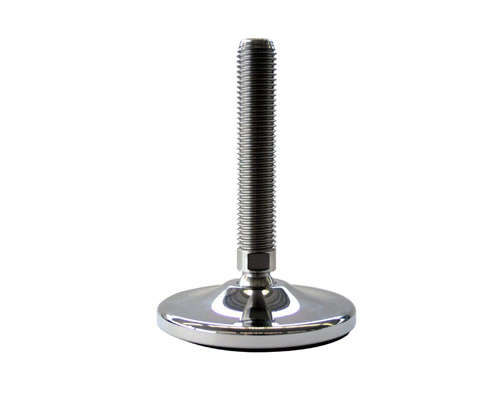

Levelling foot MASSIV Stainless Steel, Ø 120 mm, M24 x 100 mm
EAN
4061408040490
Type
45810632
The MASSIV Stainless Steel leveling foot features a robust design with a 120 mm diameter and M24 x 100 mm spindle. It supports static loads up to 55,000 N and offers a 30° adjustment angle for precise leveling.
| Quantity | Price |
|---|---|
| From 1 |
€65.70*
|
| From 13 |
€61.72*
|
| From 25 |
€57.74*
|
| From 50 |
€54.95*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 111-130 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 100 |
| Balancing angle: | 30° |
| Hygiene: | No |
Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 120 mm, M24 x 100 mm, Stainlees steel, Total height 147 mm, Articulated screw 30°, Static load 55.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
