Levelling foot MASSIV Stainless Steel, Ø 120 mm, M24 x 75 mm
Discover the MASSIV stainless steel levelling foot, designed for precision with a 120 mm diameter and M24 x 75 mm threading. Supports static loads up to 55,000 N with a 30° articulation. Enhance stability in your engineering applications.
| Quantity | Price |
|---|---|
| From 1 |
€63.54*
|
| From 13 |
€59.69*
|
| From 25 |
€55.84*
|
| From 50 |
€53.14*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 111-130 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 75 |
| Balancing angle: | 30° |
| Hygiene: | No |

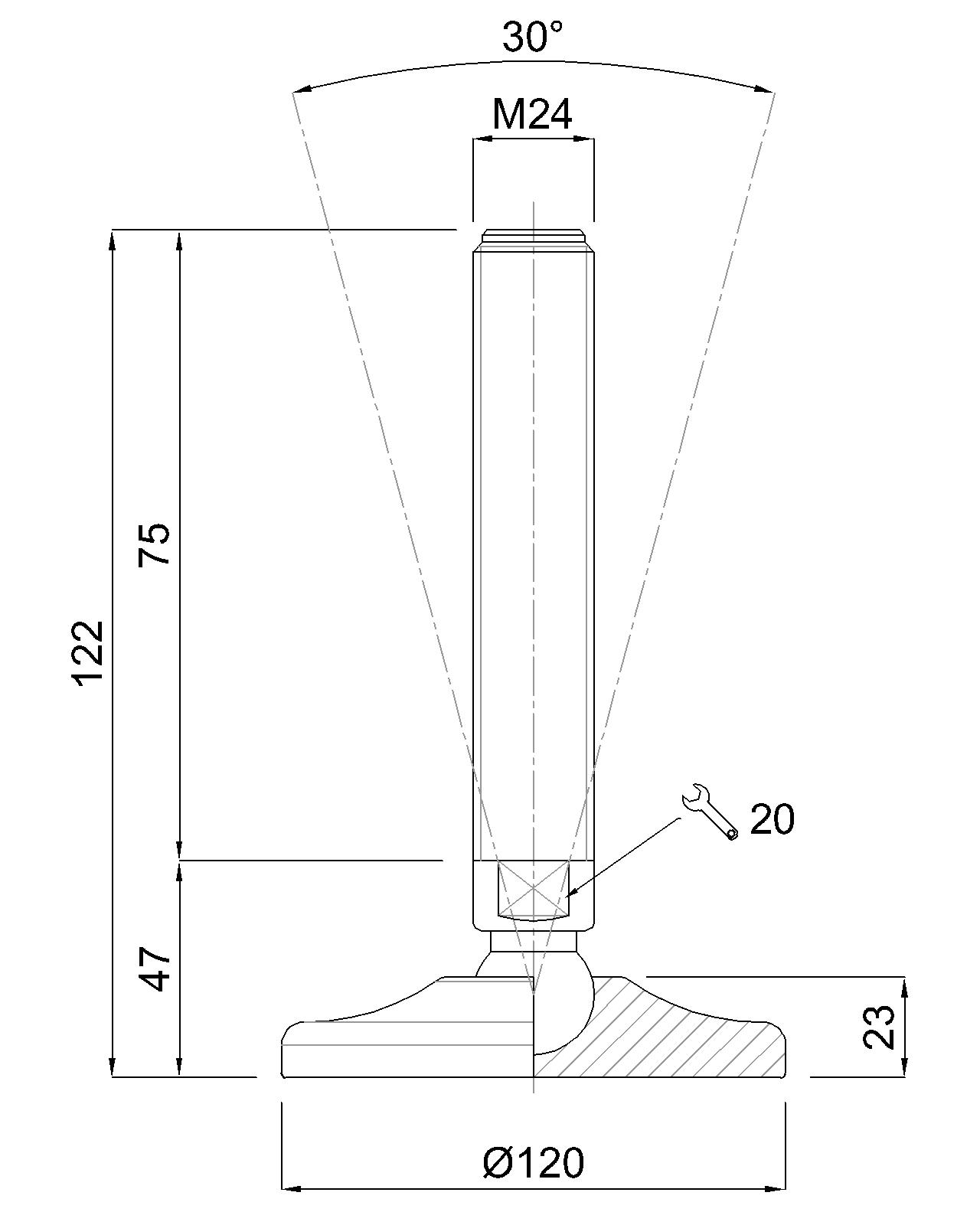

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
