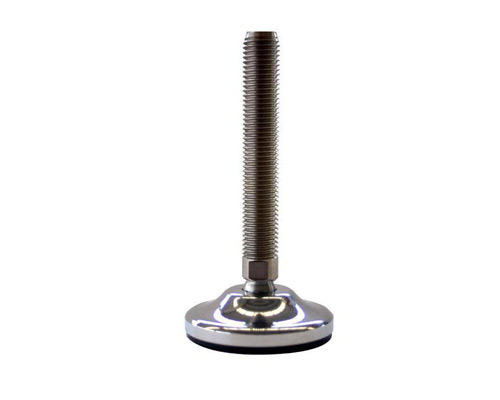

Levelling foot MASSIV Stainless Steel, Ø 120 mm, M16 x 75 mm
Discover the MASSIV Stainless Steel Levelling Foot, featuring a robust 120 mm diameter and M16 x 75 mm thread, designed for stability with a static load capacity of 35,000 N. Ideal for precision leveling in demanding environments.
| Quantity | Price |
|---|---|
| From 1 |
€62.27*
|
| From 13 |
€58.50*
|
| From 25 |
€54.72*
|
| From 50 |
€52.08*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 111-130 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 75 |
| Balancing angle: | 30° |
| Hygiene: | No |

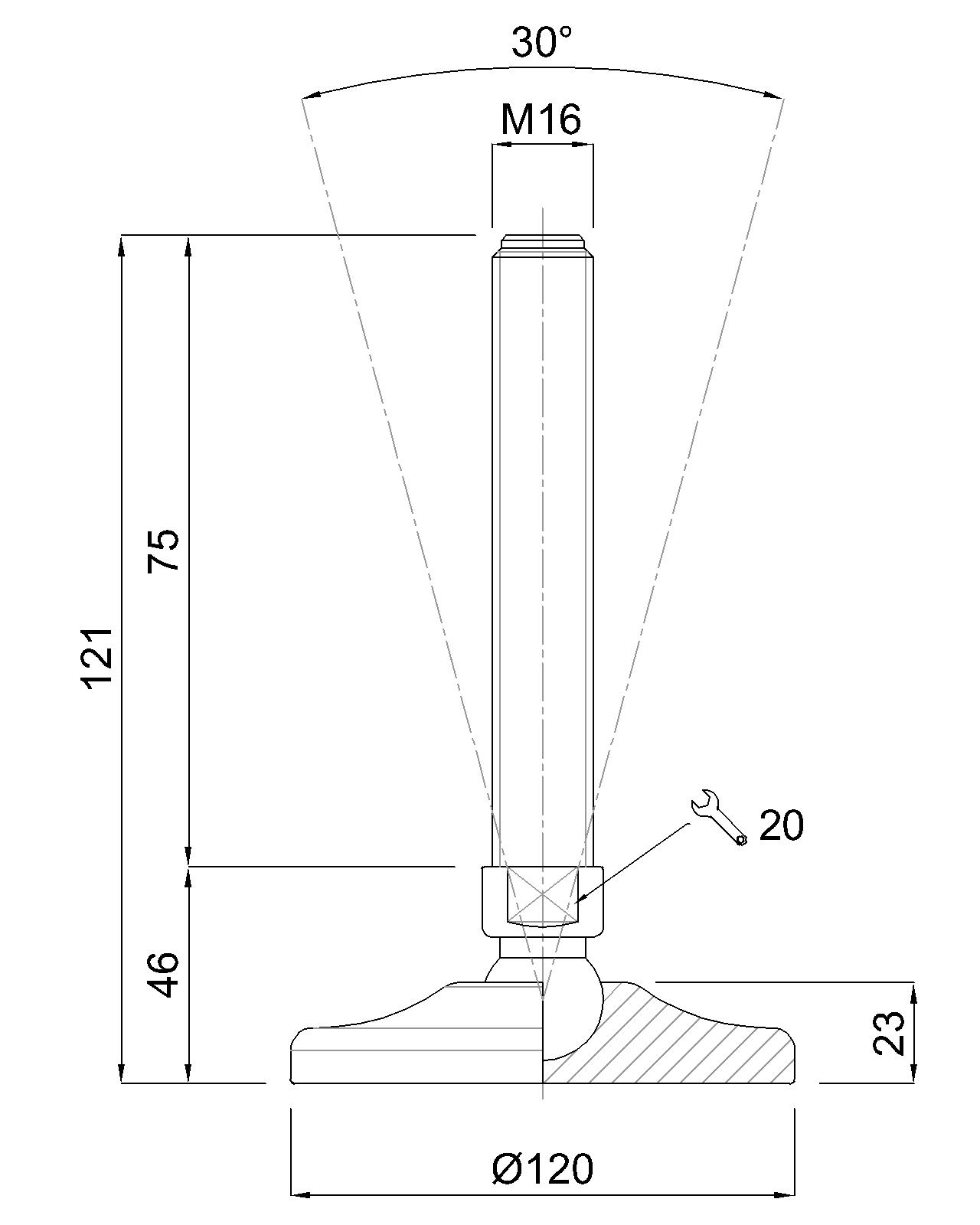

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
