Levelling foot MASSIV Stainless Steel, Ø 100 mm, M24 x 75 mm
EAN
4061408040025
Type
45810578
Introducing the MASSIV Levelling Foot in stainless steel, designed for robust applications. With a diameter of 100 mm and a static load capacity of 55,000 N, it ensures stability under diverse conditions.
| Quantity | Price |
|---|---|
| From 1 |
€45.64*
|
| From 13 |
€42.87*
|
| From 25 |
€40.11*
|
| From 50 |
€38.17*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 91-110 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 75 |
| Balancing angle: | 30° |
| Hygiene: | No |

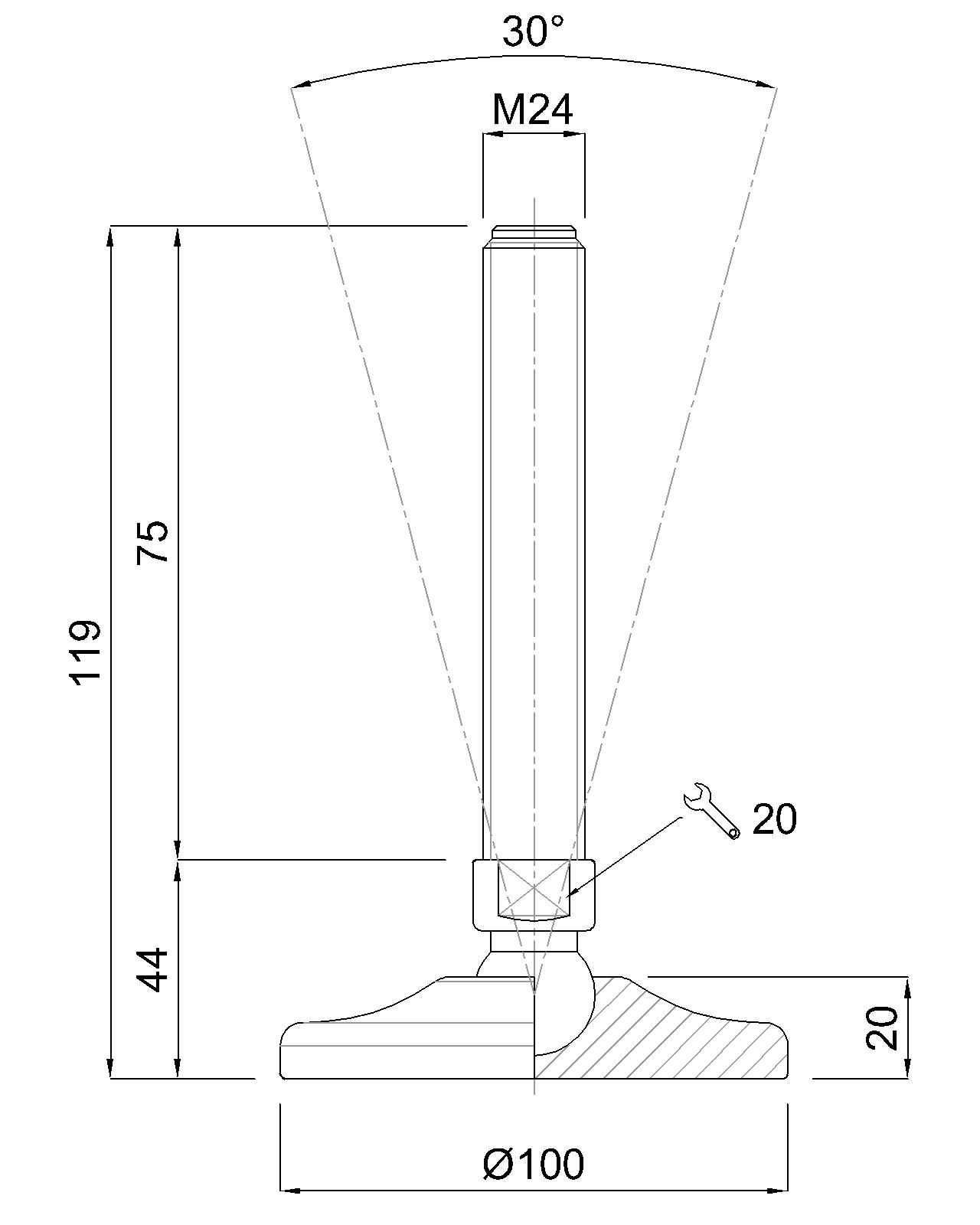

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 100 mm, M24 x 75 mm, Stainlees steel, Total height 119 mm, Articulated screw 30°, Static load 55.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
