Levelling foot MASSIV Stainless Steel, Ø 100 mm, M20 x 225 mm
EAN
4061408040001
Type
45810572
Discover the MASSIV Stainless Steel Levelling Foot with a Ø 100 mm base and M20 x 225 mm spindle, designed for durability and stability with a static load capacity of 45,000 N. Ideal for precise leveling in demanding environments.
| Quantity | Price |
|---|---|
| From 1 |
€55.56*
|
| From 13 |
€52.19*
|
| From 25 |
€48.82*
|
| From 50 |
€46.46*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 91-110 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 225 |
| Balancing angle: | 30° |
| Hygiene: | No |

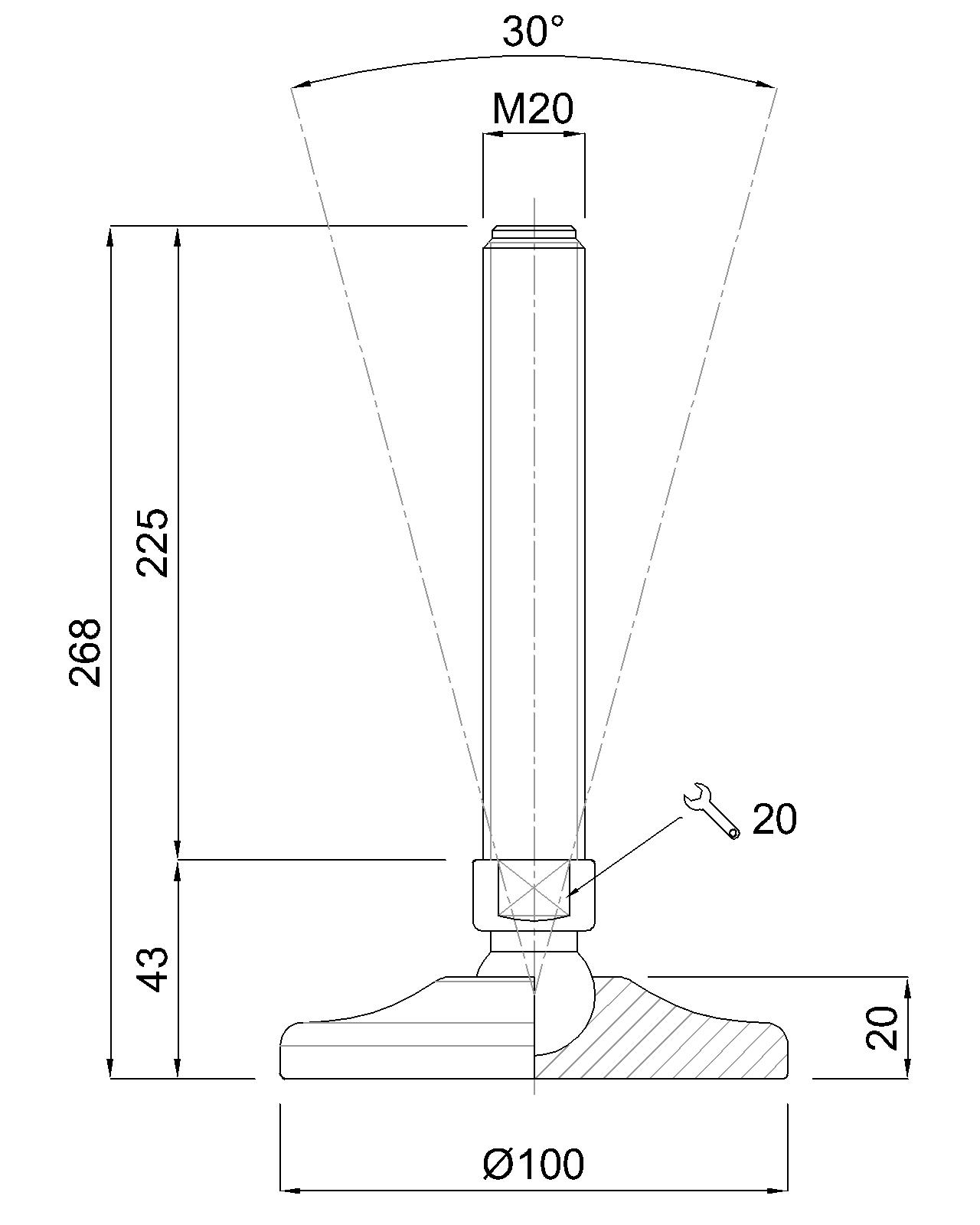

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 100 mm, M20 x 225 mm, Stainlees steel, Total height 268 mm, Articulated screw 30°, Static load 45.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
