Levelling foot MASSIV Stainless Steel, Ø 65 mm, M14 x 75 mm, NBR
Introducing the MASSIV Stainless Steel Levelling Foot: engineered for exceptional stability and support with a static load capacity of 20,000 N. Its articulated screw allows for a 30° adjustment, ensuring precise leveling in any application. Ideal for demanding industrial environments.
| Quantity | Price |
|---|---|
| From 1 |
€22.70*
|
| From 13 |
€21.33*
|
| From 25 |
€19.95*
|
| From 50 |
€18.99*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 51-70 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 14 |
| Spindle length (mm): | 75 |
| Balancing angle: | 30° |

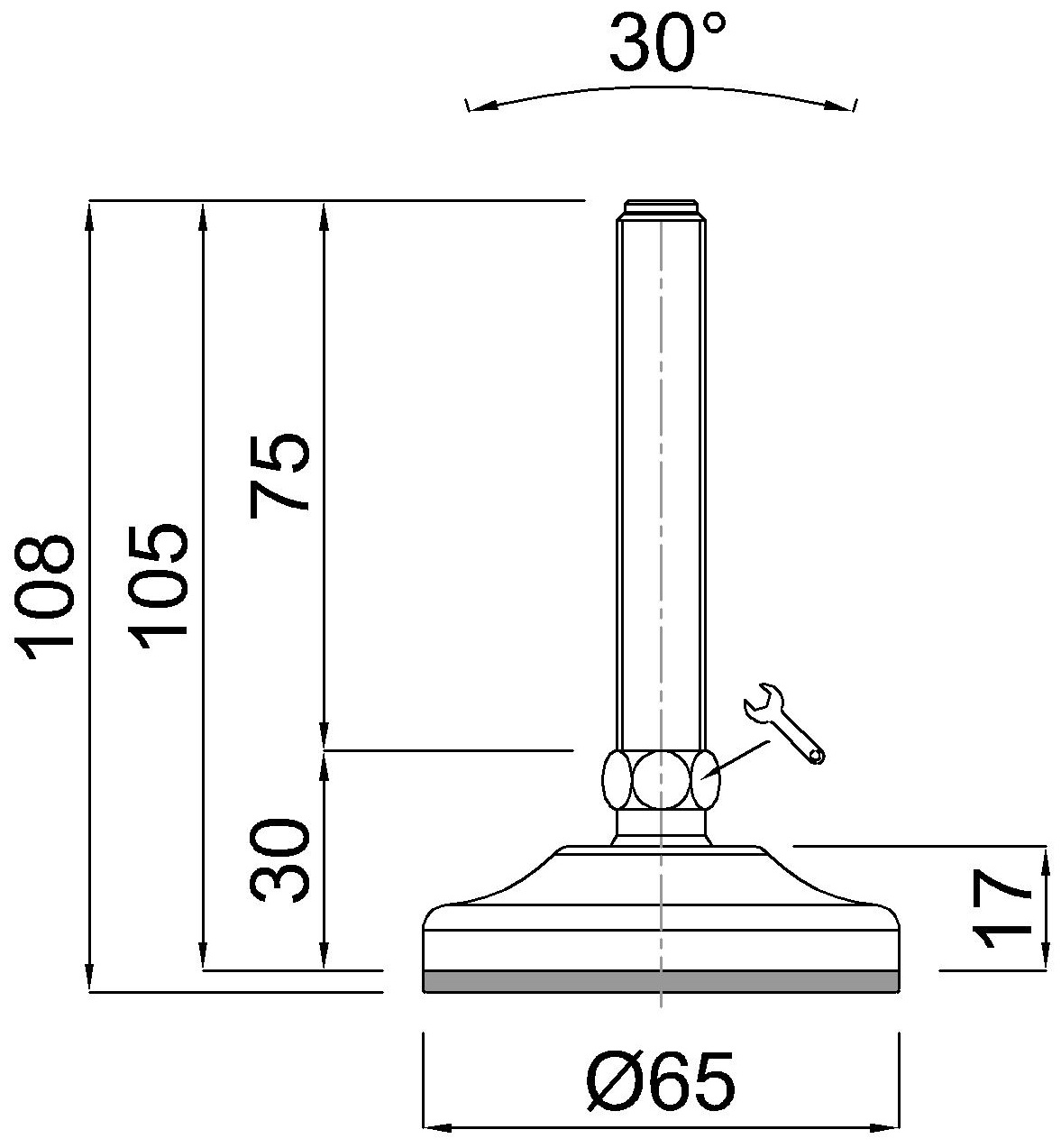

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
