Levelling foot MASSIV Stainless Steel, Ø 50 mm, M14 x 100 mm
EAN
4061408039425
Type
45810484
Discover the MASSIV Stainless Steel Levelling Foot, featuring a robust 50 mm diameter and M14 x 100 mm threading. Engineered to support static loads up to 15,000 N, it offers precise adjustments with a 30° articulated screw for optimal stability in demanding applications.
| Quantity | Price |
|---|---|
| From 1 |
€19.62*
|
| From 13 |
€18.43*
|
| From 25 |
€17.24*
|
| From 50 |
€16.41*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 41-50 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 14 |
| Spindle length (mm): | 100 |
| Balancing angle: | 30° |
| Hygiene: | No |

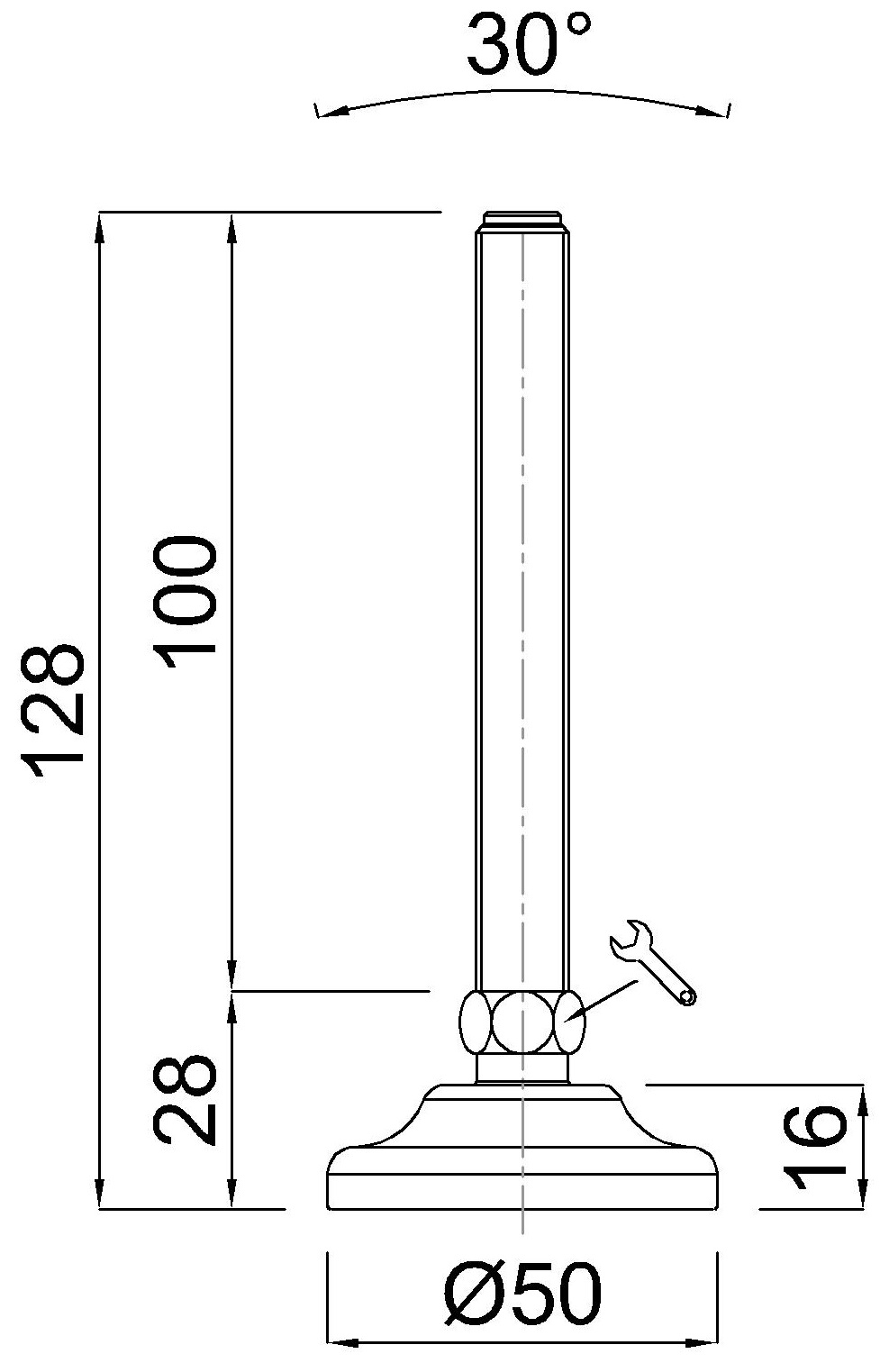

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 50 mm, M14 x 100 mm, Stainlees steel, Total height 128 mm, Articulated screw 30°, Static load 15.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
