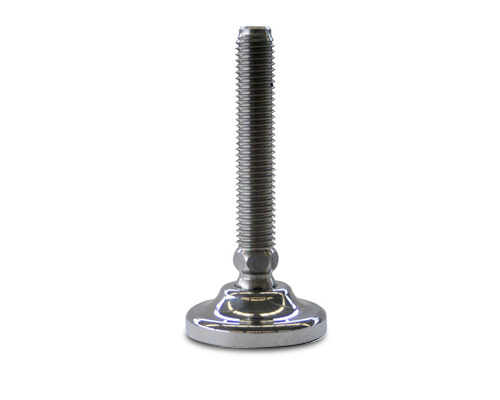

Levelling foot MASSIV Stainless Steel, Ø 50 mm, M10 x 75 mm, NBR
EAN
4061408039296
Type
45810463
Optimize equipment stability with our MASSIV Stainless Steel Levelling Foot. Featuring a 50 mm diameter, M10 screw, and a 15,000 N static load capacity, it ensures reliable performance and adjustable height.
| Quantity | Price |
|---|---|
| From 1 |
€19.50*
|
| From 13 |
€18.32*
|
| From 25 |
€17.14*
|
| From 50 |
€16.31*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 41-50 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 10 |
| Spindle length (mm): | 75 |
| Balancing angle: | 30° |
| Hygiene: | No |
Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 50 mm, M10 x 75 mm, Stainlees steel, Total height 106 mm, Articulated screw 30°, Antislip NBR black, Static load 15.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
