Levelling foot MASSIV Stainless Steel, Ø 40 mm, M10 x 75 mm
Enhance stability with the MASSIV Stainless Steel Levelling Foot. Designed for precision, it supports up to 10,000 N with adjustable articulation and superior corrosion resistance.
| Quantity | Price |
|---|---|
| From 1 |
€13.37*
|
| From 13 |
€12.56*
|
| From 25 |
€11.75*
|
| From 50 |
€11.18*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 31-40 |
| Vibration damping: | No |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 10 |
| Spindle length (mm): | 75 |
| Balancing angle: | 30° |
| Hygiene: | No |

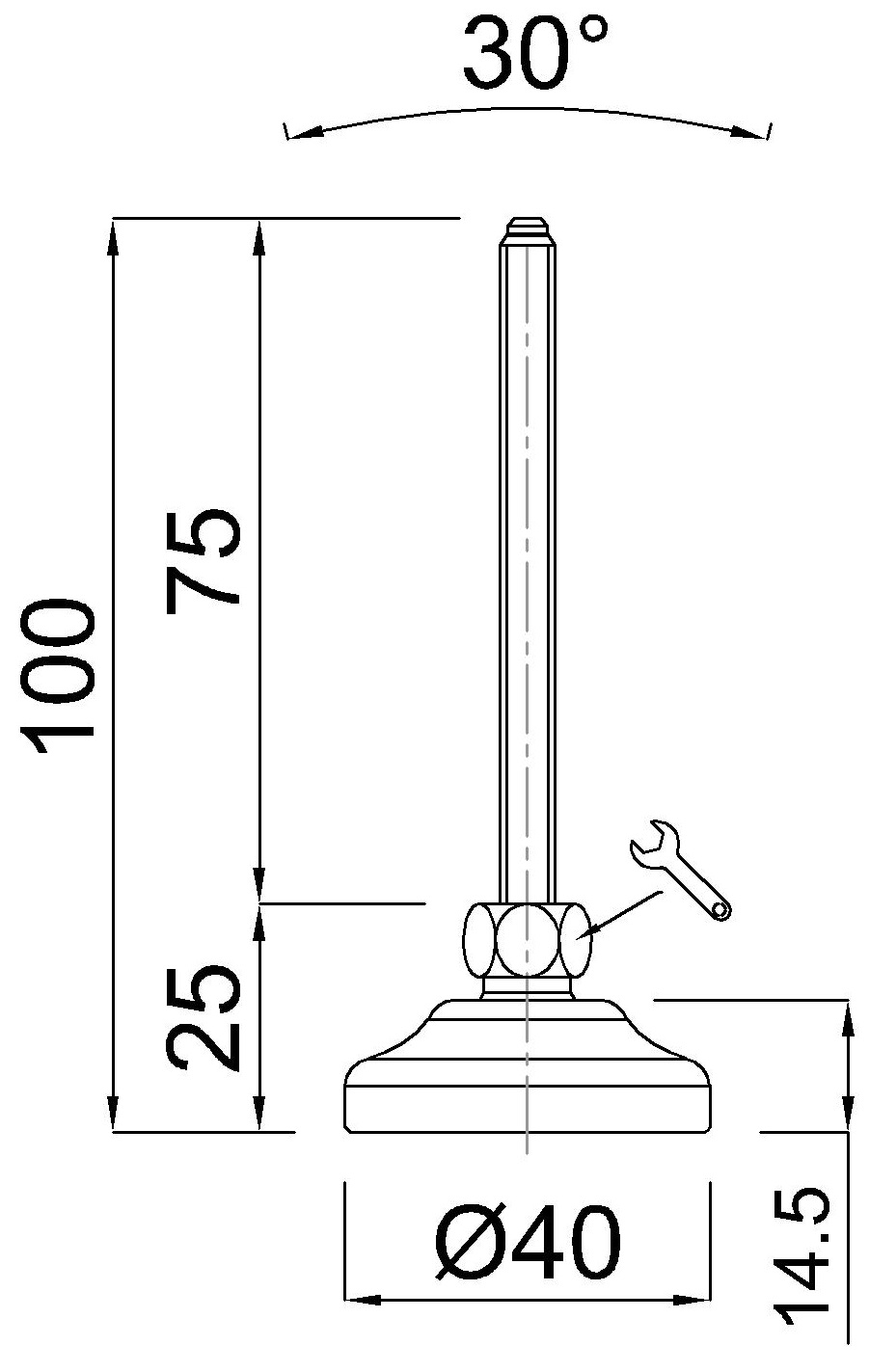

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
