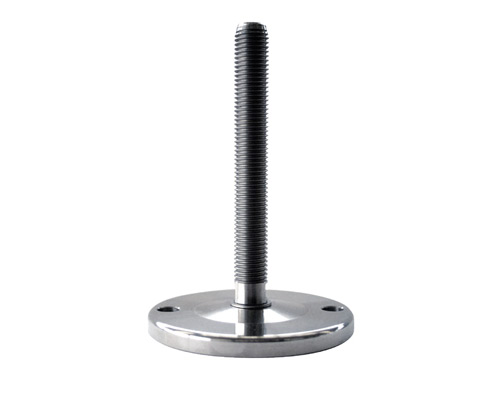

Levelling foot MASSIV Stainless Steel, Ø 120 mm, M20 x 125 mm, Drills, NBR
EAN
4061408036899
Type
45815225/G
Discover the MASSIV Stainless Steel Leveling Foot, designed for robust stability with a 120 mm diameter footprint. It supports static loads up to 40,000 N and features a 5° articulated screw for precise leveling.
| Quantity | Price |
|---|---|
| From 1 |
€56.91*
|
| From 13 |
€53.46*
|
| From 25 |
€50.01*
|
| From 50 |
€47.60*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 125 |
| Balancing angle: | 5° |
Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 120 mm, M20 x 125 mm, Stainlees steel, Total height 157 mm, Articulated screw 5°, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 40.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
