Levelling foot MASSIV Stainless Steel, Ø 50 mm, M12 x 25 mm
EAN
4061408034383
Type
45810468
Introducing our MASSIV Stainless Steel Levelling Foot – engineered for precision with a 50 mm diameter and a robust M12 x 25 mm screw. Designed for static loads up to 15,000 N, it offers a 30° articulated adjustment feature, ensuring stability and adaptability in demanding environments.
| Quantity | Price |
|---|---|
| From 1 |
€16.22*
|
| From 13 |
€15.24*
|
| From 25 |
€14.25*
|
| From 50 |
€13.57*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 41-50 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 25 |
| Balancing angle: | 30° |
| Hygiene: | No |

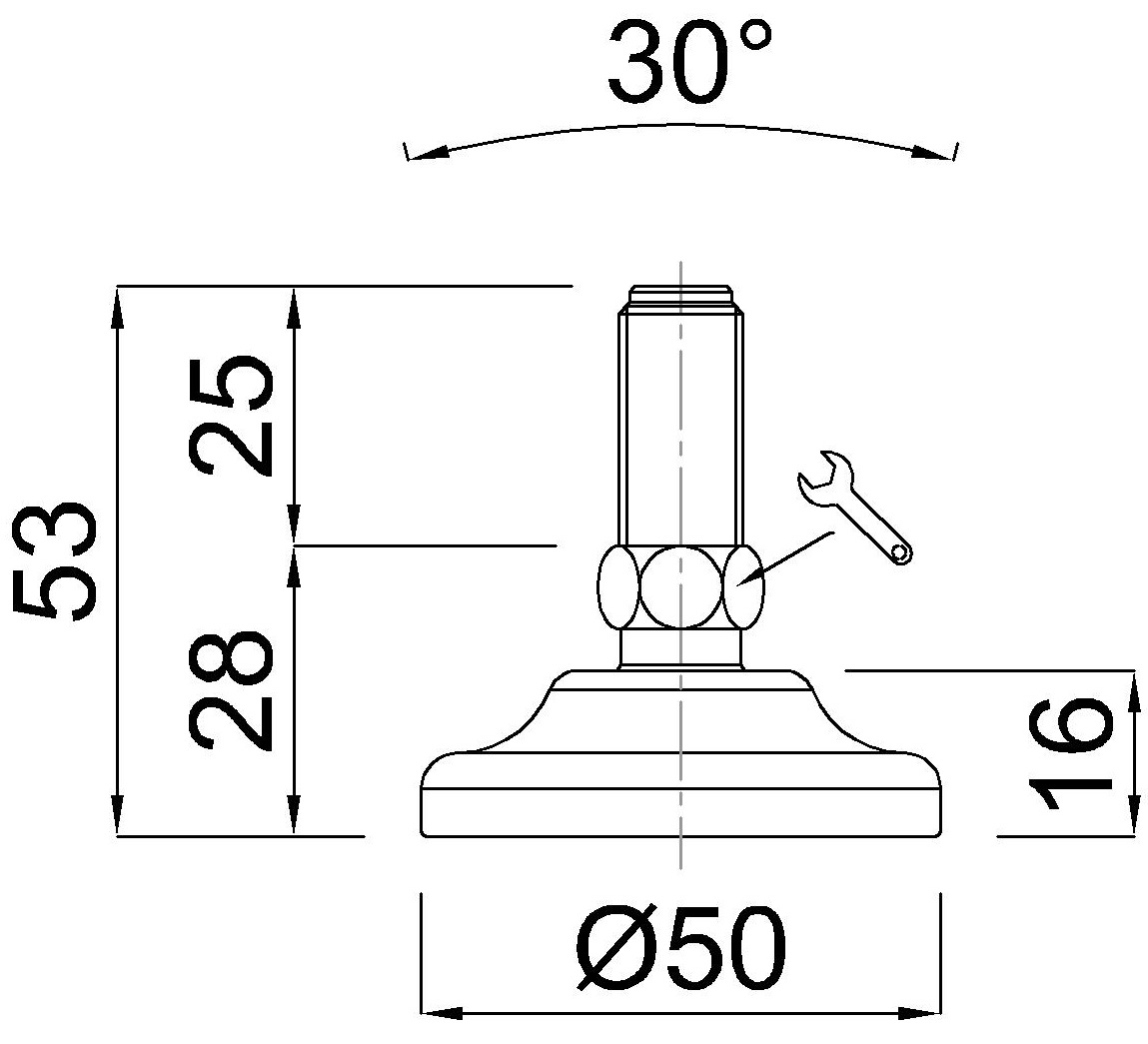

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 50 mm, M12 x 25 mm, Stainlees steel, Total height 53 mm, Articulated screw 30°, Static load 15.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
