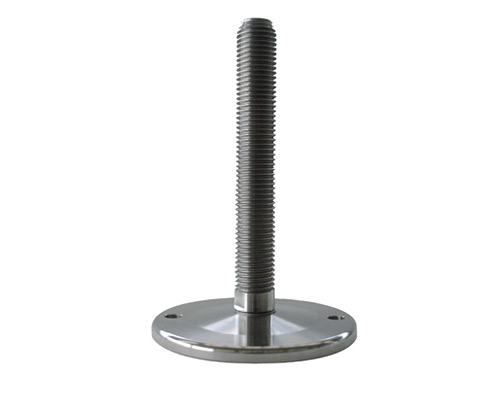

Levelling foot MASSIV Stainless Steel, Ø 150 mm, M24 x 100 mm, Drills
EAN
4061408028443
Type
45815236
Discover the MASSIV Levelling Foot made of premium stainless steel, featuring a 150 mm diameter and a static load capacity of 55,000 N. Designed for precision and durability, its articulated screw allows for a 5° adjustment, ensuring optimal stability in any application.
| Quantity | Price |
|---|---|
| From 1 |
€78.71*
|
| From 13 |
€73.94*
|
| From 25 |
€69.17*
|
| From 50 |
€65.83*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 131-230 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 100 |
| Balancing angle: | 5° |
| Hygiene: | No |
Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 150 mm, M24 x 100 mm, Stainlees steel, Total height 130 mm, Articulated screw 5°, Bore holes Ø 12,5 mm, Static load 55.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
