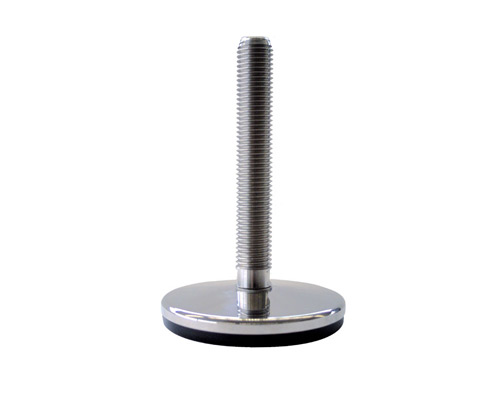

Levelling foot MASSIV Stainless Steel, Ø 120 mm, M20 x 150 mm, NBR
EAN
4061408028276
Type
45815073
The MASSIV Stainless Steel Levelling Foot, with a diameter of 120 mm and M20 x 150 mm spindle, offers exceptional stability with a static load capacity of 40,000 N. Its articulated screw design allows for a 5° adjustment, while the NBR anti-slip feature ensures secure placement. Ideal for engineers and manufacturers seeking robust and reliable levelling solutions.
| Quantity | Price |
|---|---|
| From 1 |
€53.03*
|
| From 13 |
€49.82*
|
| From 25 |
€46.60*
|
| From 50 |
€44.35*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 150 |
| Balancing angle: | 5° |

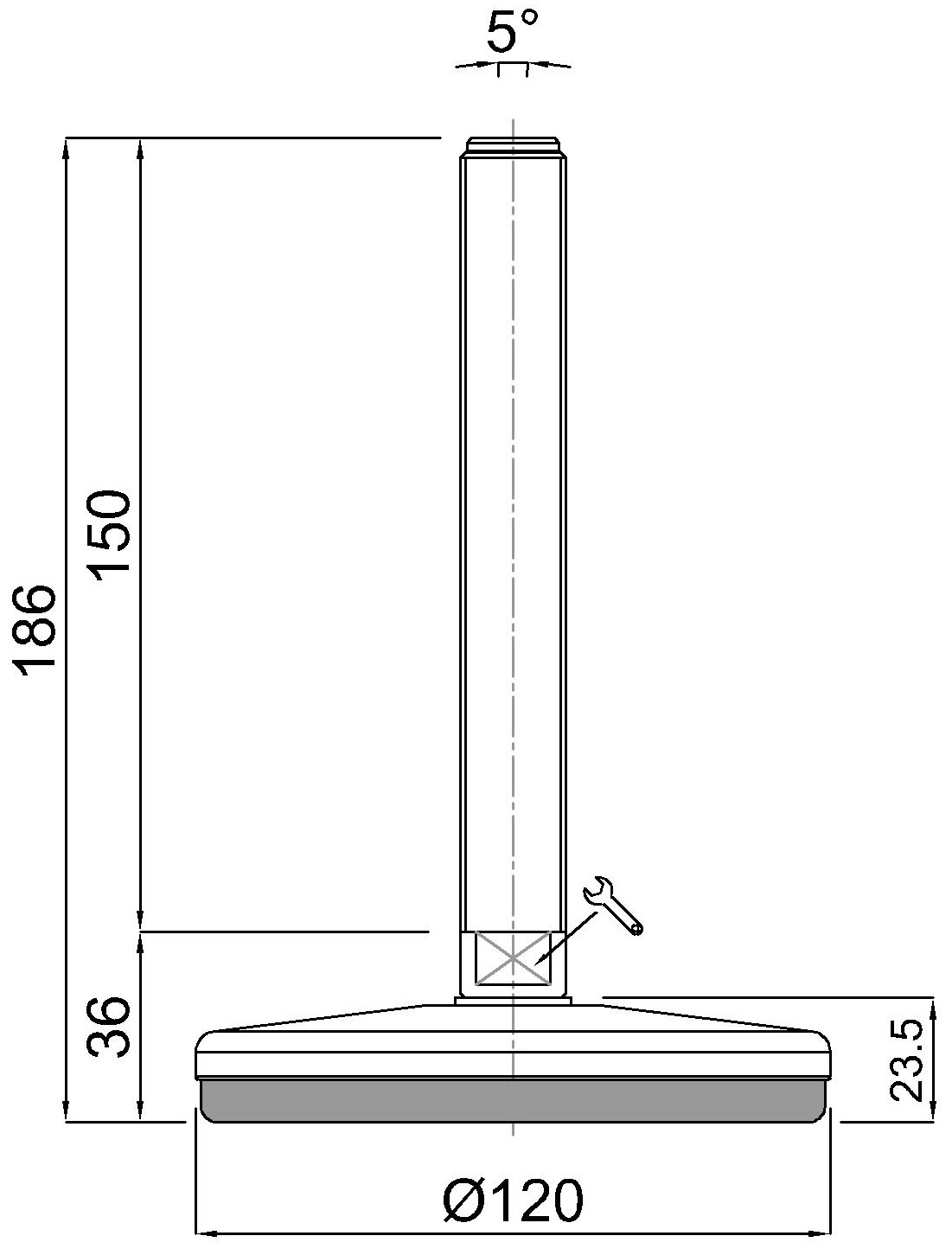

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 120 mm, M20 x 150 mm, Stainlees steel, Total height 186 mm, Articulated screw 5°, Antislip NBR black, Static load 40.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
