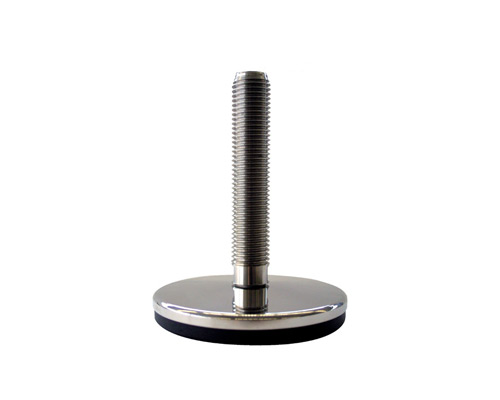

Levelling foot MASSIV Stainless Steel, Ø 150 mm, M30 x 150 mm, NBR
EAN
4061408023660
Type
45815111
Discover the MASSIV Stainless Steel Levelling Foot, featuring a robust design with a diameter of 150 mm and a 30 mm spindle. Engineered for static loads up to 50,000 N, it ensures stability and precision in uneven conditions.
| Quantity | Price |
|---|---|
| From 1 |
€94.50*
|
| From 13 |
€88.77*
|
| From 25 |
€83.04*
|
| From 50 |
€79.03*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 150 |
| Balancing angle: | 5° |

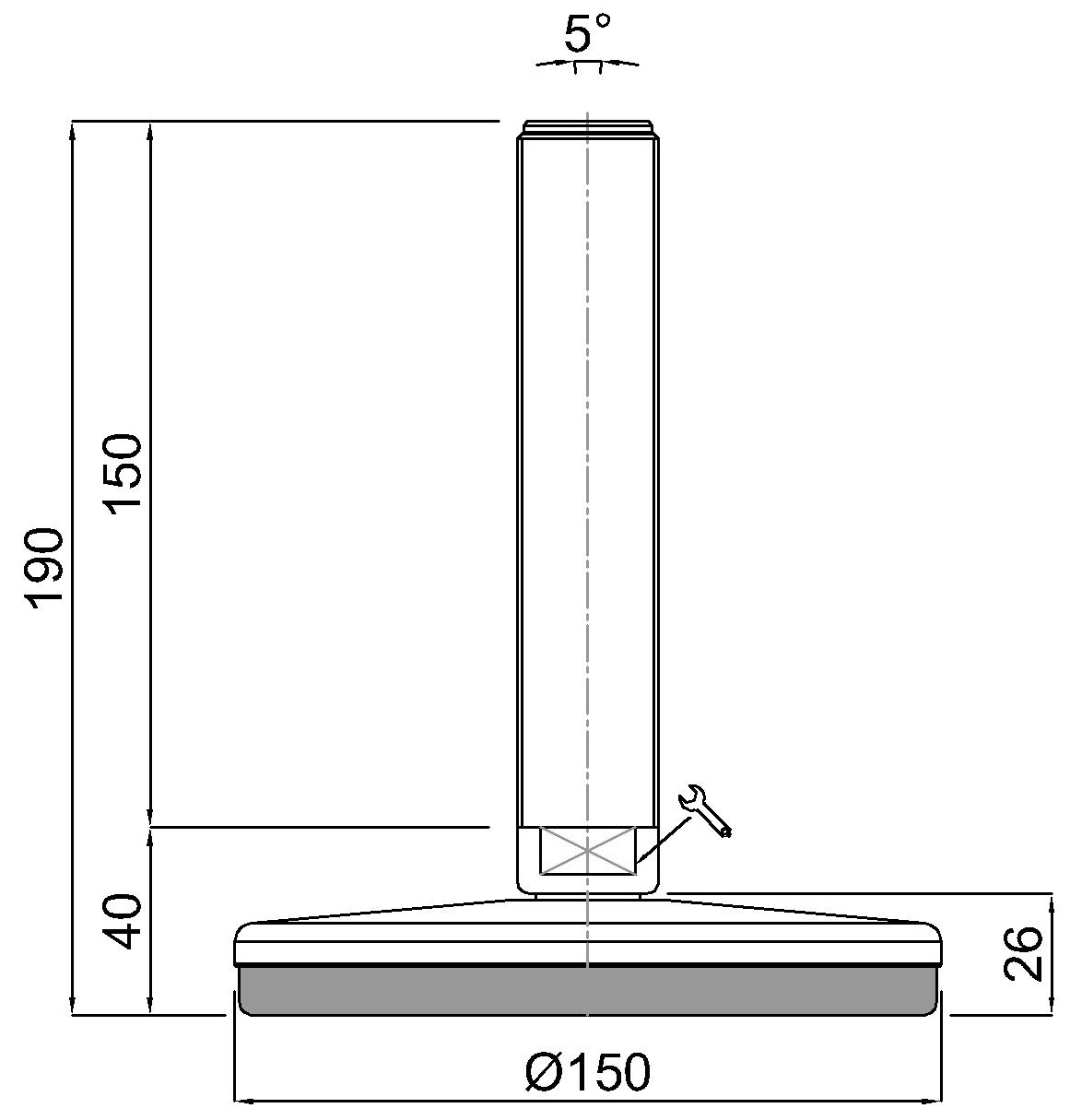

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 150 mm, M30 x 150 mm, Stainlees steel, Total height 190 mm, Articulated screw 5°, Antislip NBR black, Static load 50.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
