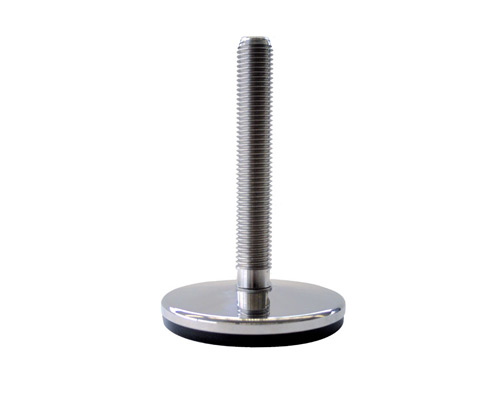

Levelling foot MASSIV Stainless Steel, Ø 120 mm, M16 x 100 mm, NBR
EAN
4061408022533
Type
45815064
Upgrade your equipment stability with the MASSIV Stainless Steel Levelling Foot. Designed for high static loads of 40,000 N, it features a durable NBR anti-slip base and adjustable articulation for precision alignment.
| Quantity | Price |
|---|---|
| From 1 |
€48.53*
|
| From 13 |
€45.59*
|
| From 25 |
€42.64*
|
| From 50 |
€40.59*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 100 |
| Balancing angle: | 5° |
Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 120 mm, M16 x 100 mm, Stainlees steel, Total height 136 mm, Articulated screw 5°, Antislip NBR black, Static load 40.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
