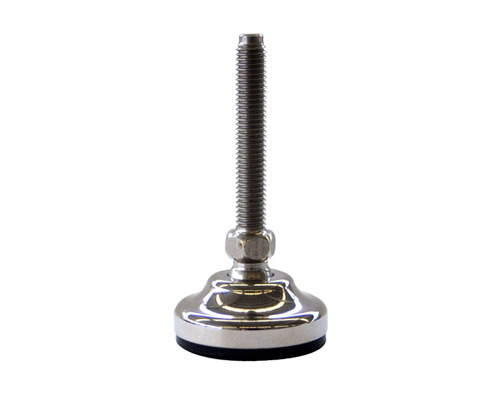

Levelling foot MASSIV Stainless Steel, Ø 40 mm, M8 x 25 mm
EAN
4061408021833
Type
45810438
Discover our MASSIV Leveling Foot made of stainless steel, designed for robust applications. With a static load capacity of 10,000 N and adjustable angles up to 30°, it ensures stability and precision in assembly.
| Quantity | Price |
|---|---|
| From 1 |
€11.10*
|
| From 13 |
€10.43*
|
| From 25 |
€9.76*
|
| From 50 |
€9.29*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 31-40 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 8 |
| Spindle length (mm): | 25 |
| Balancing angle: | 30° |
| Hygiene: | No |
Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 40 mm, M8 x 25 mm, Stainlees steel, Total height 50 mm, Articulated screw 30°, Static load 10.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
